P2T-218-60-R-1W-SFF Active
Reflective SP2T Switch
Additional Documents
- Product Feature
- Test Report - 7/15/22
- S- Parameters
- 3D Model
- PL45890 - Unit Data
- PL45891 - Unit Data
- PL45892 - Unit Data
- PL45963 - Unit Data
- PL46326 - Unit Data
- PL46327 - Unit Data
- PL46328 - Unit Data
- PL46329 - Unit Data
- PL46330 - Unit Data
- PL46981 - Unit Data
- PL46982 - Unit Data
- PL46983 - Unit Data
- PL46984 - Unit Data
- PL46985 - Unit Data
- PL46986 - Unit Data
- PL46987 - Unit Data
- PL46988 - Unit Data
- PL46989 - Unit Data
- PL46990 - Unit Data
- PL46991 - Unit Data
- PL46992 - Unit Data
- PL46993 - Unit Data
- PL46994 - Unit Data
- PL46995 - Unit Data
- PL46996 - Unit Data
- PL47064 - Unit Data
- PL47065 - Unit Data
- PL47066 - Unit Data
- PL47067 - Unit Data
- PL47068 - Unit Data
- PL47069 - Unit Data
- PL47070 - Unit Data
- PL47071 - Unit Data
- PL47072 - Unit Data
- PL47073 - Unit Data
- PL47074 - Unit Data
- PL47075 - Unit Data
- PL47076 - Unit Data
- PL47077 - Unit Data
- PL47078 - Unit Data
- PL47079 - Unit Data
- PL47080 - Unit Data
- PL60176 - Unit Data
- PL60177 - Unit Data
- PL60178 - Unit Data
- PL60179 - Unit Data
- PL60180 - Unit Data
- PL60181 - Unit Data
- PL60182 - Unit Data
- PL60183 - Unit Data
- PL60184 - Unit Data
- PL60185 - Unit Data
- PL60186 - Unit Data
- PL60187 - Unit Data
- PL60188 - Unit Data
- PL60433 - Unit Data
- PL60434 - Unit Data
- PL60435 - Unit Data
- PL60436 - Unit Data
- PL60437 - Unit Data
- PL60438 - Unit Data
- PL60439 - Unit Data
- PL60440 - Unit Data
- PL60441 - Unit Data
- PL60442 - Unit Data
- PL60443 - Unit Data
- PL60444 - Unit Data
- PL60445 - Unit Data
- PL60446 - Unit Data
- PL60447 - Unit Data

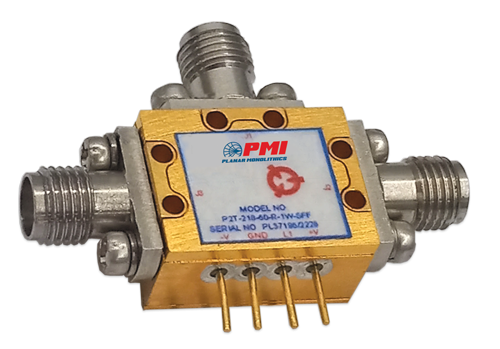

PMI Model P2T-218-60-R-1W-SFF is a reflective, single pole two throw switch that operates over the 2 to 18 GHz frequency range and features an insertion loss of 2.5 dB; an isolation of 60 dB; 2 W peak power handling; a VSWR of 2.0:1, and a switching speed of 20 ns. Model has SMA female connectors, and size is 1.75" x 0.53" x 0.35".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 2.5 dB Max |
| Insertion Loss - Typ (dB): | 2.5 dB |
| Isolation (dB): | 60 dB Min |
| Input Power (dBm): | 1 W CW, 2 W Peak, 1% DC, 100 ns Max (Survival) |
| Max Operating Power: | 23 dBm CW Min |
| Switching Speed: | 25 ns Max |
| DC Power Supply: | +5 to +15 VDC @ 65 mA Max -5 to -15 VDC @ 65 mA Max |
| Control Logic: | +5 VDC TTL |
| VSWR: | 2.0:1 Max |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| Size: | 1.75" x 0.53" x 0.35" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -54 °C to +85 °C |
| Temperature (Storage): | -57 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
