P2T-2G10G-60-R-515-SFF-2W Preliminary
SP2T Reflective Switch

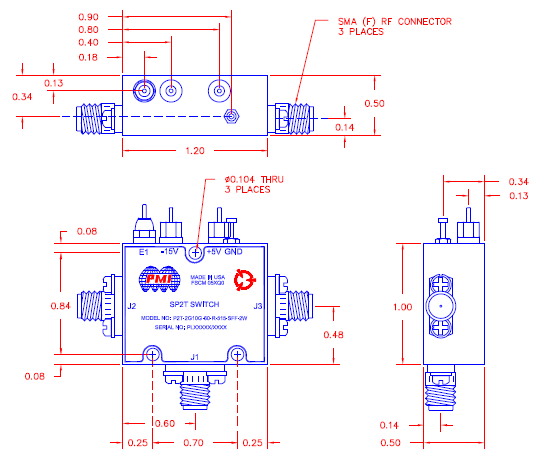

Quantic PMI Model P2T-2G10G-60-R-515-SFF-2W is a single pole two throw, reflective switch that operates over the 2 to 10 GHz frequency range that handles input power of 2 W CW and has a maximum switching speed of 100 ns. Housing measures 1.2" x 1.0" x 0.5" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 2 to 10 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 10 |
| Insertion Loss (dB): | 3 dB Max |
| Insertion Loss - Typ (dB): | 3 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Input Power (dBm): | 2 W CW Max |
| Switching Speed: | 100 ns Max |
| Switching Speed (Typ): | 100 ns |
| Power Supply: | +5 VDC @ 200 mA Max, -15 VDC @ 100 mA Max |
| Control Signal: | Single Control TTL Toggle, Logic "0" = J1 to J2 ON, Logic "1" = J1 to J3 ON |
| VSWR In/Out: | 2.0:1 Max |
| Power & Control Connector: | Feedthrus |
| Connectors: | SMA Female |
| Size: | 1.2" x 1.0" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond B |
| Shock: | MIL-STD-202F, Method 213B Cond B |
| Vibration: | MIL-STD-202F, Method 204D Cond B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
