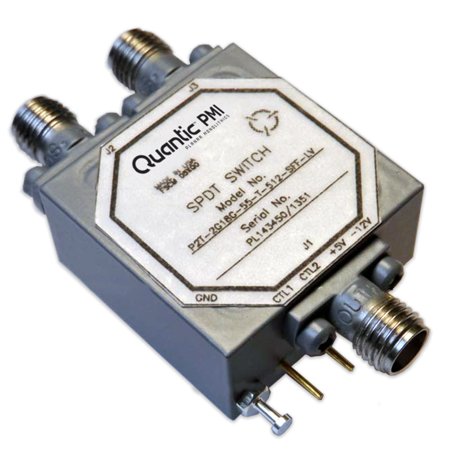

P2T-2G18G-55-T-512-SFF-LV Active
SP2T Terminated Switch
Additional Documents
- Product Feature
- Test Report - 4/2/14
- PL14252 - Unit Data
- PL14555 - Unit Data
- PL14256 - Unit Data
- PL14257 - Unit Data
- PL14257-1 - Unit Data
- PL14260 - Unit Data
- PL15173 - Unit Data
- PL15193 - Unit Data
- PL15348 - Unit Data
- PL15463 - Unit Data
- PL15464 - Unit Data
- PL15505 - Unit Data
- PL15506 - Unit Data
- PL15507 - Unit Data
- PL15666 - Unit Data
- PL15669 - Unit Data
- PL16248 - Unit Data
- PL16249 - Unit Data
- PL16254 - Unit Data
- PL16820 - Unit Data
- PL16821 - Unit Data
- PL16825 - Unit Data
- PL32169 - Unit Data
- PL32170 - Unit Data
- PL32171 - Unit Data
- PL32172 - Unit Data
- PL32173 - Unit Data
- PL32174 - Unit Data
- PL32175 - Unit Data
- PL32176 - Unit Data
- PL32177 - Unit Data
- PL32178 - Unit Data
Quantic PMI Model P2T-2G18G-55-T-512-SFF-LV is a terminated, single pole, two throw switch that operates from the 2.0 to 18.0 GHz frequency range and can handle +23 dBm CW input power with port to port isolation of 55 dB minimum. This model has low insertion loss while still offering a fast switching speed of 50 ns maximum.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3 dB Max |
| Insertion Loss - Typ (dB): | 3 dB |
| Isolation (dB): | 55 dB Min - Measured 56.35 dB |
| Isolation - Typ (dB): | 55 dB |
| Switching Rage PRF: | 5 MHz |
| Input Power (dBm): | 23 dBm CW Max (Operating), 27 dBm CW Max (Survial) |
| Video leakage: | 50 mV Peak to Peak Max - Measured at 300 MHz BW |
| Switching Speed: | 50 ns Max, Ton = 50% TTL to 90% RF, Toff = 50% TTL to 10% RF |
| Switching Speed (Typ): | 50 ns |
| Power Supply: | 80 mA @ + 5 VDC Typ, 80 mA @ -12 VDC Typ |
| Control Signal: | TTL Logic "0" = Insertion Loss (1.6 mA Max Sink @ 0.4 V), TTL Logic "1" = Isolation (40 µA Max Source @ 2.4 V) |
| VSWR In/Out: | 2.0:1 Max, Unconditionally stable under any Input/Output VSWR Load |
| Connectors: | SMA Female - Passive Stainless Steel |
| Size: | 1.0 "x 1.0 "x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -45 ºC to +90 ºC |
| Temperature (Storage): | -54 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. C |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Salt Fog: | MIL-STD-2-2F, Method 101D-EST Cond. B |
| Fungus: | MIL-STD-810F, Method 508.5 |
| EMI / EMC: | MIL-STD-461E |
