P2T-2G18G-55-T-512-SFF-LV-SP

Terminated, SP2T Switch

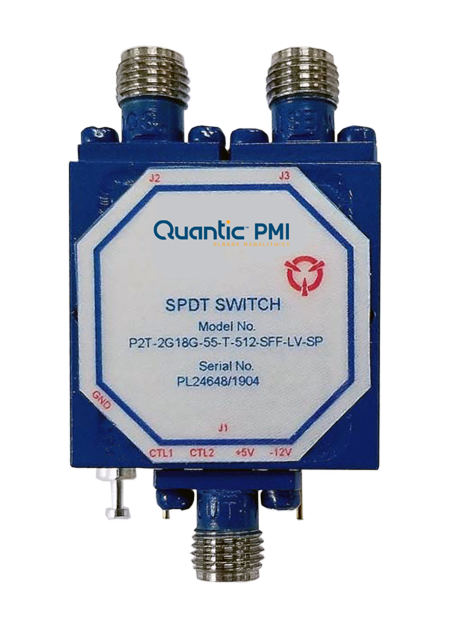

PMI Model No. P2T-2G18G-55-T-512-SFF-LV-SP is a terminated, single pole, two throw switch that operates from the 2.0 to 18.0 GHz frequency range and can handle +23 dBm CW input power with port-to-port isolation of 55 dB minimum.  This model has low insertion loss while still offering a fast-switching speed of 50 ns Maximum.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 2 GHz
Frequency Max: 18 GHz
Reflective / Absorptive: Absorptive
Switching Speed (Typ): 50 ns
Frequency: 2.0 to 18.0 GHz
Configuration: SP2T
Isolation: 55 dB Min
Insertion Loss: 3.0 dB Max
VSWR In/Out: 2.0:1 Max, Unconditionally stable under any Input/Output VSWR Load
Switching Rage PRF: 5 MHz
Input Power: +23 dBm CW Max (Operating),
+27 dBm CW Max (Survival)
Video leakage: 50 mV Peak to Peak Max Measured at 300 MHz BW
Switching Speed: 50 ns Max,
Ton = 50% TTL to 90% RF,
Toff = 50% TTL to 10% RF
Control Signal: TTL Logic "0" = Insertion Loss (1.6 mA Max Sink @ 0.4 V),
TTL Logic "1" = Isolation (40 µA Max Source @ 2.4 V)
Power Supply: 80 mA @ +5 VDC Typ,
80 mA @ -12 VDC Typ
Connectors: SMA (F) - Passive Stainless Steel
Size: 1.0 "x 1.0 "x 0.5"
Environmental Ratings:
Temperature (Operating): -45 ºC to +90 ºC
Temperature (Storage): -54 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. C
Vibration: MIL-STD-202F, Method 204D Cond. B
Salt Fog: MIL-STD-2-2F, Method 101D-EST Cond. B
Fungus: MIL-STD-810F, Method 508.5
EMI / EMC: MIL-STD-461E
