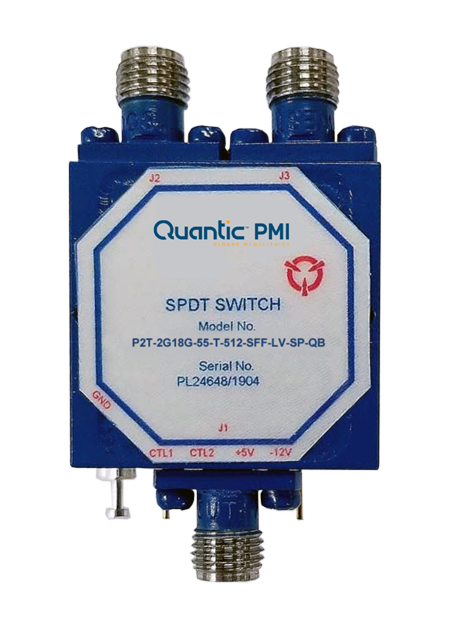

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 3 dB Max |
|---|
| Isolation (dB): | 55 dB Min |
|---|
| Switching Rate: | 5 MHz (PRF) |
|---|
| Input Power (dBm): | 23 dBm CW Max (Operating)
27 dBm CW Max (Suvival) |
|---|
| Video leakage: | 50 mV Peak To Peak Maximum - Measured @ 0.3 GHz BW |
|---|
| Switching Speed: | 50 ns Max
Ton = 50% TTL to 90% RF
Toff = 50% TTL to 10% RF |
|---|
| DC Voltage & Current: | 80 mA @ +5 VDC Typ
80 mA @ -12 VDC Typ |
|---|
| Control: | TTL Logic "0" = Insertion Loss (1.6 mA Max Sink @ 0.4 V)
TTL Logic "1" = Isolation (40 µA Max Source @ 2.4 V)
Surge protection included on TTL lines |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female - Passive Stainless Steel |
|---|
| Size: | 1.00' x 1.00" x 0.50" |
|---|
| Sealing: | Unless otherwise specified, Quantic PMI will supply epoxy seal polyimide primer IAW MIL-P-23377, Type I, Class 1 or 3. |
|---|
| Finish: | Blue Epoxy Polyimide Coating IAW MIL-C-22750, Type I over Epoxy |
|---|
| Weight: | 1.5 oz Typ |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -45 °C to +90 °C |
|---|
| Temperature (Storage): | -54 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. C |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Salt Fog: | MIL-STD-202F, METHOD 1010-EST COND. B |
|---|
| Fungus: | MIL-STD-810F, METHOD 508.5 |
|---|
| EMI / EMC: | MIL-STD-461 E |
|---|
