P2T-2G18G-60-T-SFF-3W Preliminary
SP2T Absorptive Switch

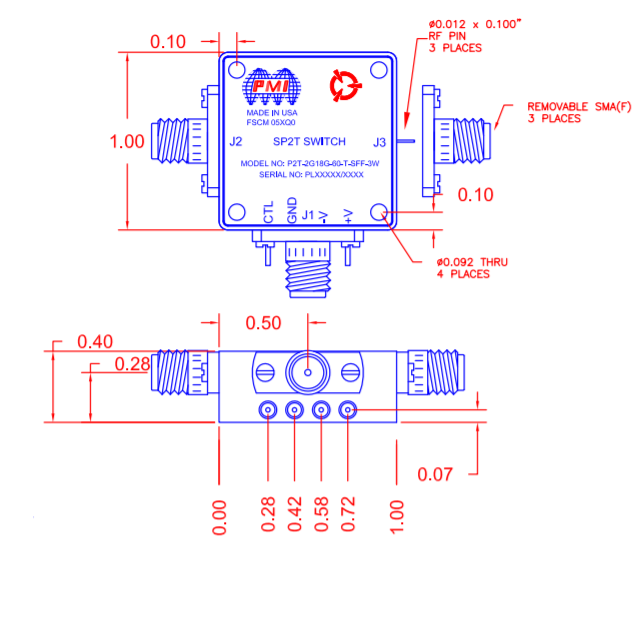

Quantic PMI Model P2T-2G18G-60-T-SFF-3W is a high speed, single pole, two throw, absorptive switch capable of switching within 50 ns that has a frequency range of 2 to 18 GHz and has over 60 dB of isolation. Housing measures 1.0" x 1.0" x 0.4" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 2.5 dB Typ, 3.5 dB Max |
| Insertion Loss - Typ (dB): | 2.5 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Input Power (dBm): | 3 W Peak, 2% Duty Cycle, 50 ns PW |
| Switching Speed: | 50 ns Max (50% TTL to 10/90% RF) |
| Switching Speed (Typ): | 50 ns |
| Power Supply: | +15 VDC @ 100 mA Max, -15 VDC @ 100 mA Max |
| Control Signal: | TTL Logic |
| VSWR In/Out: | 2.0:1 Max |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| Size: | 1.0 "x 1.0" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -20 ºC to +75 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. C |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
