P2T-2G18G-60-T-SFF-PM-I Active
Absorptive, High Speed, SP2T Switch
Buy Now
Additional Documents
- Product Feature
- S-Parameters
- Test Report - 6/29/20
- PL29400 - Unit Data
- PL29401 - Unit Data
- PL29444 - Unit Data
- PL29445 - Unit Data
- PL29445-1 - Unit Data
- PL29446 - Unit Data
- PL29447 - Unit Data
- PL31807 - Unit Data
- PL31807-1 - Unit Data
- PL31808 - Unit Data
- PL31808-1 - Unit Data
- PL31809 - Unit Data
- PL31809-1 - Unit Data
- PL31810 - Unit Data
- PL31810-1 - Unit Data
- PL32226 - Unit Data
- PL32226-1 - Unit Data
- PL32227 - Unit Data
- PL32227-1 - Unit Data
- PL32413 - Unit Data
- PL32414 - Unit Data
- PL32415 - Unit Data
- PL32416 - Unit Data
- PL32417 - Unit Data
- PL32418 - Unit Data
- PL32419 - Unit Data
- PL32420 - Unit Data
- PL32421 - Unit Data
- PL32422 - Unit Data
- PL32423 - Unit Data
- PL32424 - Unit Data
- PL32425 - Unit Data
- PL32426 - Unit Data
- PL32427 - Unit Data
- PL32428 - Unit Data
- PL32429 - Unit Data
- PL32430 - Unit Data
- PL32431 - Unit Data
- PL32432 - Unit Data
- PL32433 - Unit Data
- PL32434 - Unit Data
- PL32435 - Unit Data
- PL32436 - Unit Data
- PL32437 - Unit Data
- PL32438 - Unit Data
- PL32439 - Unit Data
- PL32440 - Unit Data
- PL32441 - Unit Data
- PL32442 - Unit Data
- PL32443 - Unit Data
- PL32444 - Unit Data
- PL33253 - Unit Data
- PL32420 - Unit Data
- PL32427 - Unit Data
- PL44523 - Unit Data
- PL44524 - Unit Data
- PL44525 - Unit Data
- PL44526 - Unit Data
- PL44527 - Unit Data

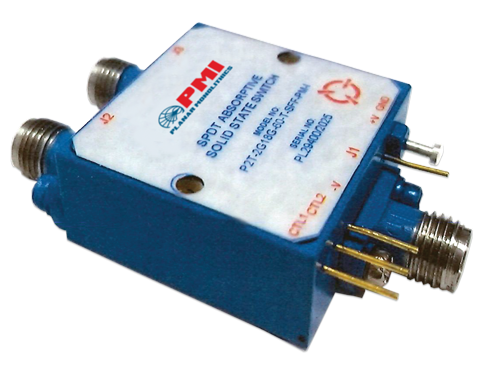

PMI Model P2T-2G18G-60-T-SFF-PM-I is an absorptive, high speed, single pole, two throw switch capable of switching within 100 ns maximum and has a maximum insertion loss of 3 dB with a frequency range of 2 to 18 GHz. Housing size is 1.0" x 1.0" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3 dB Max |
| Isolation (dB): | 60 dB Min |
| Phase Matching: | 5° Max |
| Input Power (dBm): | 30 dBm Max (Survival), 20 dBm Max (Operating) |
| Impedance: | 50 Ohm |
| Switching Speed: | 100 ns Max |
| Power Supply: | +5 VDC @ 100 mA -15 VDC @ 100 mA |
| VSWR In/Out: | 2.0:1 (Input) |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0" x 0.4" |
| Sealing: | Hermetic |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
