P2T-2G18G-65-T-SFF-I Active
SP2T Absorptive Switch
Additional Documents
- Product Feature
- Test Report - 3/4/21
- PL31612 - Unit Data
- PL31613 - Unit Data
- PL31614 - Unit Data
- PL31615 - Unit Data
- PL31616 - Unit Data
- PL31617 - Unit Data
- PL31618 - Unit Data
- PL31619 - Unit Data
- PL31620 - Unit Data
- PL31621 - Unit Data
- PL31622 - Unit Data
- PL31623 - Unit Data
- PL31624 - Unit Data
- PL31625 - Unit Data
- PL31626 - Unit Data
- PL31627 - Unit Data
- PL31628 - Unit Data
- PL31629 - Unit Data
- PL31630 - Unit Data
- PL31631 - Unit Data
- PL31632 - Unit Data
- PL31633 - Unit Data
- PL31634 - Unit Data
- PL31635 - Unit Data
- PL31636 - Unit Data
- PL31637 - Unit Data
- PL31638 - Unit Data

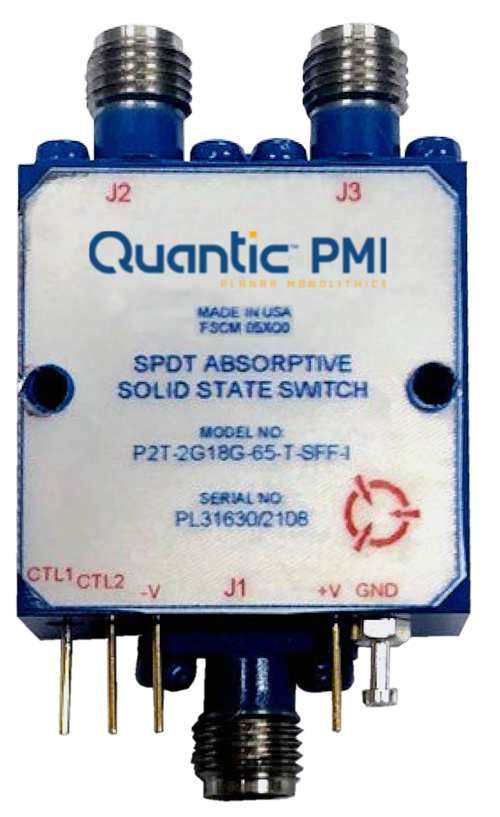

Quantic PMI Model P2T-2G18G-65-T-SFF-I is an absorptive, high speed, single pole, two throw switch capable of switching within 100 ns maximum with a frequency range of 2 to 18 GHz with 65 dB isolation. Housing size is 1.0" x 1.0" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 6 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3 dB Max |
| Isolation (dB): | 65 dB Min |
| Input Power (dBm): | 30 dBm Max (Survival) 20 dBm Max (Operating) |
| Impedance: | 50 Ohm |
| Switching Speed: | 100 ns Max |
| DC Voltage & Current: | +5 VDC @ 100 mA Max -15 VDC @ 100 mA Max |
| Control: | TTL Compatible |
| VSWR On/Off: | 2.0:1 Max |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0 x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
