P2T-2G18G-8055-R-SFF Preliminary
SP2T Reflective Switch

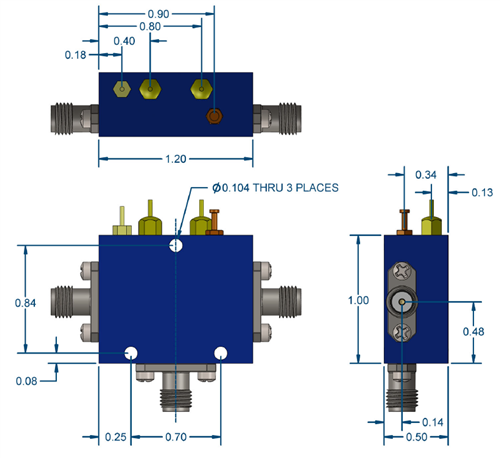

PMI Model P2T-2G18G-8055-R-SFF is a 2 to 18 GHz, SP2T, reflective switch featuring 80 dB isolation at 2 GHz, 55 dB isolation at 18 GHz, and 50 ns rise and fall switching times. Housing size is 1.2" x 1.0" x 0.5".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.25 dB Max |
| Isolation (dB): | 80 dB Min @ 2 GHz 55 dB Min @ 18 GHz |
| Power Handling: | 20 dBm CW Max |
| Rise/Fall Time: | 50 ns Max |
| DC Power Supply: | +19 VDC ± 5% @ 65 mA Max -19 VDC ± 5% @ 50 mA Max |
| VSWR: | 2.0:1 Max |
| Size: | 1.20" x 1.00" x 0.50" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -65 ˚C to +110 ˚C |
| Temperature (Storage): | -65 ˚C to +125 ˚C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
