P2T-2G6G-75-T-SFF-I Preliminary
SP2T Absorptive Switch
Additional Documents
- Product Feature
- Test Report - 3-30-21
- PL31533 - Unit Data
- PL31534 - Unit Data
- PL31535 - Unit Data
- PL31536 - Unit Data
- PL31537 - Unit Data
- PL31538 - Unit Data
- PL31539 - Unit Data
- PL31540 - Unit Data
- PL31541 - Unit Data
- PL31542 - Unit Data
- PL31543 - Unit Data
- PL31544 - Unit Data
- PL31545 - Unit Data
- PL31546 - Unit Data
- PL31547 - Unit Data
- PL31548 - Unit Data
- PL31549 - Unit Data
- PL31550 - Unit Data
- PL31551 - Unit Data
- PL31552 - Unit Data
- PL31553 - Unit Data
- PL31554 - Unit Data
- PL31555 - Unit Data
- PL31556 - Unit Data
- PL31557 - Unit Data
- PL31558 - Unit Data
- PL31559 - Unit Data
- PL31560 - Unit Data
- PL31561 - Unit Data
- PL31562 - Unit Data
- PL31563 - Unit Data
- PL31564 - Unit Data
- PL31565 - Unit Data
- PL31566 - Unit Data
- PL31567 - Unit Data
- PL31568 - Unit Data
- PL31569 - Unit Data
- PL31570 - Unit Data
- PL31571 - Unit Data
- PL31572 - Unit Data
- PL33484 - Unit Data
- PL33485 - Unit Data
- PL33486 - Unit Data
- PL33487 - Unit Data
- PL33488 - Unit Data
- PL33489 - Unit Data
- PL33490 - Unit Data
- PL33491 - Unit Data
- PL33492 - Unit Data
- PL33493 - Unit Data
- PL33494 - Unit Data
- PL33495 - Unit Data

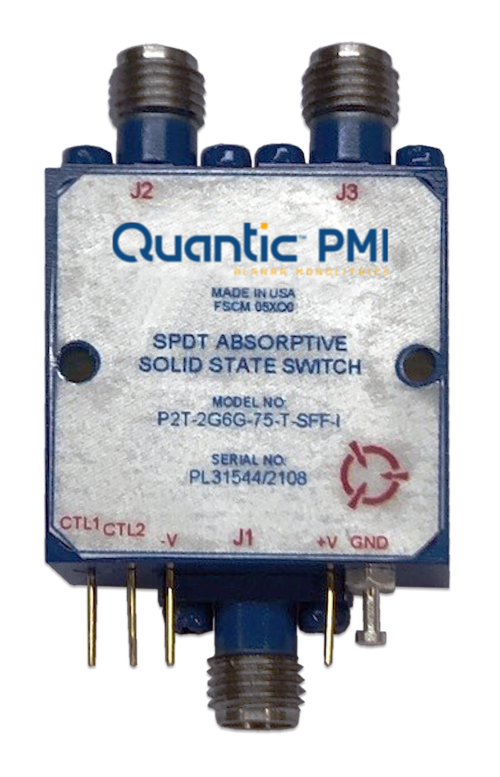

Quantic PMI Model P2T-2G6G-75-T-SFF-I is an absorptive, high speed, single pole, two throw switch capable of switching within 100 ns maximum that has a frequency range of 2 to 6 GHz with 75 dB isolation. Housing size is 1.0" x 1.0 x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 2 to 6 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 6 |
| Insertion Loss (dB): | 1.5 dB Max |
| Isolation (dB): | 75 dB Min |
| Input Power (dBm): | 30 dBm Max (Survival) 20 dBm Max (Operating) |
| Impedance: | 50 Ohm |
| Switching Speed: | 100 ns Max |
| DC Voltage & Current: | +5 VDC @ 100 mA Max -15 VDC @ 100 mA Max |
| Control: | TTL Compatible |
| Input VSWR: | 2.0:1 Max |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
