P2T-2G8G-40-R-570-TFF-100W
Preliminary
PMI Model No. P2T-2G8G-40-R-570-TFF-100W is a reflective 1 Kilowatt peak high-power cold switching single pole double throw switch operating in the 2.0 to 8.0 GHz frequency range.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Min: | 2.0 GHz |
|---|
| Frequency Max: | 8.0 GHz |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency: | 2.0 to 8.0 GHz |
|---|
| Configuration: | SP2T |
|---|
| Isolation: | 40 dB min. |
|---|
| Insertion Loss: | 2.2 dB max. @ Band Edges for 20% Bandwidth and Typically 1.75 dB Goal
For Mid-Band of 80% of the Bandwidth 2.0 dB max. and Typically 1.5 dB Goal |
|---|
| VSWR In/Out: | 2:1 max. |
|---|
| Input Power: | 1 kW Peak, 100 W CW |
|---|
| Duty Cycle: | 10% |
|---|
| Switching Speed: | 1.25 us max., 1.1 us typ.
(50% TTL to 90% RF & 50% TTL to 10% RF) |
|---|
| Connectors: | TNC (F) |
|---|
| Power & Control Connector: | 9-Pin Micro D (F) |
|---|

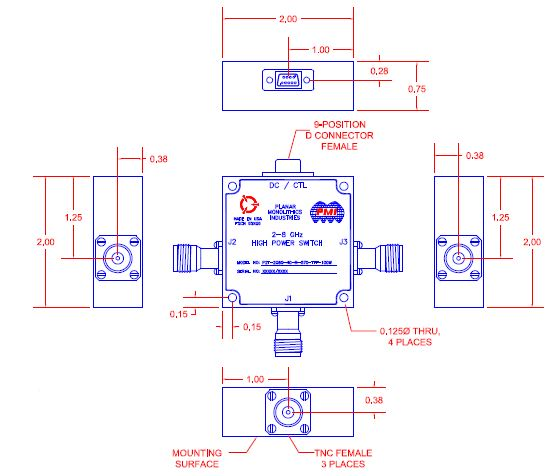

| Size: | 2.00" x 2.00" x 0.75" |
|---|
| Finish: | Painted Blue (No Paint on Mounting Surface) |
|---|
| Power: | 1.0 kW Peak, 100 W CW |
|---|
| Load VSWR: | Better than 2.0:1 |
|---|
| DC Voltage & Current: | +5 V @ 400 mA and -70 V @ 100 mA |
|---|
| Control: | Single TTL (TTL "0" J1-J3 = Low Loss) |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40°C to +85°C |
|---|
| Environmental: | MIL-STD-810E |
|---|
| EMI / EMC: | MIL-STD-461 |
|---|
