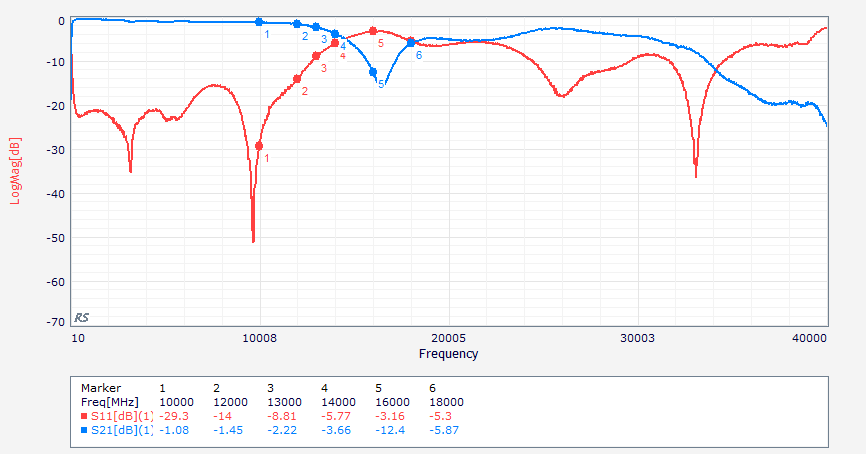

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 0.3 |
|---|
| Frequency Max (GHz): | 10 |
|---|
| Insertion Loss (dB): | 2.5 dB Max |
|---|
| Insertion Loss - Typ (dB): | 2.5 dB |
|---|
| Isolation (dB): | 65 dB Min |
|---|
| Isolation - Typ (dB): | 65 dB |
|---|
| Input Power (dBm): | 10 W CW Max |
|---|
| Switching Speed: | 100 ns Typ |
|---|
| Switching Speed (Typ): | 100 ns |
|---|
| Power Supply: | +5 VDC @ 100 mA Max,
-15 V @ 75 mA Max |
|---|
| Control Signal: | Single Control TTL Toggle |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| Power & Control Connector: | Single Control TTL Toggle |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.2" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204B Cond. B |
|---|
| Altitude: | MIL STD 202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
