P2T-3G3R5G-45-R-SFF-50W-SM Active
SP2T Reflective Switch

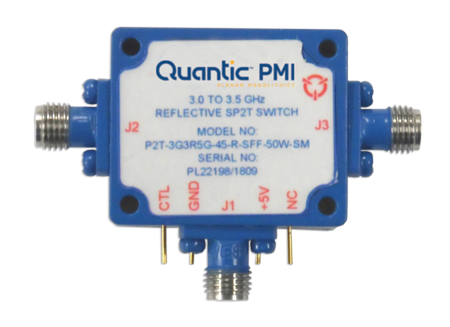

Quantic PMI Model P2T-3G3R5G-45-R-SFF-50W-SM is a SP2T Reflective Switch designed to operate over the 3.0 to 3.5 GHz frequency range. This model is designed to handle 50 Ws average input power.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 3 to 3.5 |
| Frequency Min (GHz): | 3 |
| Frequency Max (GHz): | 3.5 |
| Insertion Loss (dB): | 1 dB Typ |
| Insertion Loss - Typ (dB): | 1 dB |
| Isolation (dB): | 40 dB Typ. - Measured 43.1 dB |
| Isolation - Typ (dB): | 40 dB |
| Switching Rate: | 15 kHz Max |
| Input Power (dBm): | 50 W CW Max *See Notes |
| Switching Speed: | 1 µs Max. - Measured 66 ns |
| Switching Speed (Typ): | 1 µs |
| Power Supply: | +5 VDC @ 100 mA - Measured 32 mA |
| Control Signal: | TTL |
| VSWR In/Out: | 1.5:1 - Measured 1.4:1 |
| Connectors: | SMA Female |
| Finish: | Painted Blue, *Mounting surface free of paint |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| EMI / EMC: | MIL-STD-461 |
