P2T-4G8G-50-R-SFFF-OPT7R9G8R4G Preliminary
High Power SP2T Pin Diode Switch
Quantic PMI Model P2T-4G8G-50-R-SFFF-OPT7R9G8R4G is a single pole, two throw, high power pin diode switch that operates from 7.9 to 8.4 GHz. This device offers high isolation, low insertion loss, and fast switching
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 7.9 to 8.4 |
| Frequency Min (GHz): | 7.9 |
| Frequency Max (GHz): | 8.4 |
| Insertion Loss (dB): | 1.5 dB Max |
| Isolation (dB): | 45 dB Min |
| Input Power (dBm): | 40 W Max |
| Operating Peak Input Power: | 200 W Max |
| Duty Cycle: | 1% Max |
| Switching Speed: | 200 ns |
| Switching Speed (Typ): | 200 ns Typ, 500 ns Max |
| Pulse Width: | 10 µs Max |
| Power Supply: | +5 VDC, -28 VDC |
| Control Signal: | TTL |
| VSWR In/Out: | 2.0:1 Max |
| Connectors: | SMA Female |

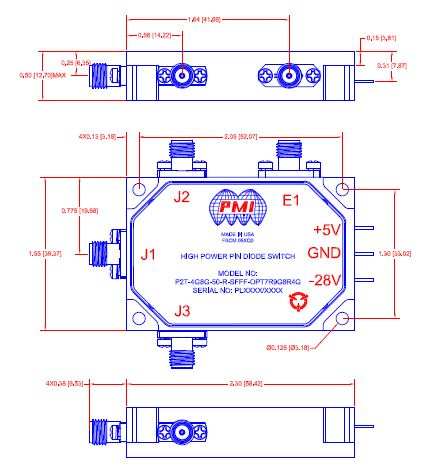

| Size: | 1.55" x 2.30" x 0.50" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. C |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
