P2T-500M18G-80-R-515-SFF-OPT112 Active
Reflective SP2T Pin Diode Switch
Buy Now
Additional Documents
- Product Feature
- 3D Model
- Test Report - 9/7/22
- Test Report - 3/1/24
- S- Parameters
- PL37746 - Unit Data
- PL37748 - Unit Data
- PL43611 - Unit Data
- PL43612 - Unit Data
- PL43613 - Unit Data
- PL43614 - Unit Data
- PL43615 - Unit Data
- PL43616 - Unit Data
- PL43617 - Unit Data
- PL43618 - Unit Data
- PL43619 - Unit Data
- PL43620 - Unit Data
- PL43621 - Unit Data
- PL43622 - Unit Data
- PL43623 - Unit Data
- PL43624 - Unit Data
- PL43625 - Unit Data
- PL43626 - Unit Data
- PL43627 - Unit Data
- PL43955 - Unit Data
- PL43956 - Unit Data
- PL43957 - Unit Data
- PL43958 - Unit Data
- PL43959 - Unit Data
- PL43960 - Unit Data
- PL43961 - Unit Data
- PL43962 - Unit Data
- PL43963 - Unit Data
- PL43964 - Unit Data
- PL43965 - Unit Data
- PL43966 - Unit Data
- PL43967 - Unit Data
- PL43968 - Unit Data
- PL43969 - Unit Data
- PL44641 - Unit Data
- PL44642 - Unit Data
- PL44643 - Unit Data
- PL44644 - Unit Data
- PL44645 - Unit Data
- PL44646 - Unit Data
- PL44647 - Unit Data
- PL44648 - Unit Data
- PL44649 - Unit Data
- PL44900 - Unit Data
- PL45104 - Unit Data
- PL45105 - Unit Data
- PL45106 - Unit Data
- PL45113 - Unit Data
- PL45114 - Unit Data
- PL45115 - Unit Data
- PL45116 - Unit Data
- PL45117 - Unit Data
- PL45137 - Unit Data
- PL45138 - Unit Data
- PL45139 - Unit Data
- PL45140 - Unit Data
- PL45141 - Unit Data
- PL45142 - Unit Data
- PL45143 - Unit Data
- PL45144 - Unit Data
- PL45559 - Unit Data
- PL45560 - Unit Data
- PL45561 - Unit Data
- PL45562 - Unit Data
- PL45563 - Unit Data
- PL45564 - Unit Data
- PL45565 - Unit Data
- PL45566 - Unit Data
- PL45567 - Unit Data
- PL45568 - Unit Data

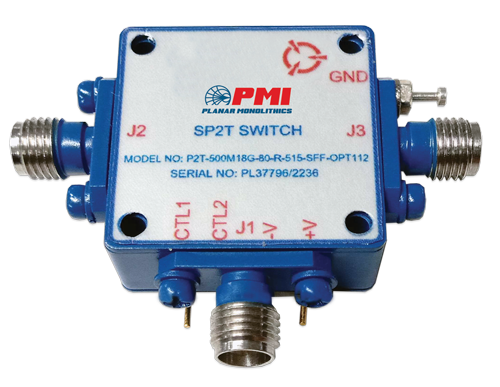

Quantic PMI Model P2T-500M18G-80-R-515-SFF-OPT112 is an reflective, single pole, two throw pin diode switch that operates over the 1 to 12 GHz frequency range with a minimum isolation of 70 dB and a maximum insertion loss of 2 dB. This model incorporates a TTL compatible driver for easy system integration. Housing size is 0.69" x 0.63" x 0.35" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 1 to 12 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 12 |
| Insertion Loss (dB): | 2 dB Max (0.5 to 12 GHz) |
| Insertion Loss - Typ (dB): | 2 dB Max (0.5 to 12 GHz) |
| Isolation (dB): | 70 dB Min |
| Switching Rage PRF: | 100 ns Max |
| Input Power (dBm): | 25 dBm CW Max |
| Operating Input Power: | 25 dBm CW Max |
| Switching Speed: | 100 ns Max |
| Control Signal: | TTL Logic |
| VSWR In/Out: | 2.0:1 Max |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Storage): | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond B |
| Shock: | MIL-STD-202F, Method 213B Cond B |
| Vibration: | MIL-STD-202F, Method 204D Cond B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
