P2T-500M18G-80-T-515-SFF-4W-ST-OPT300M20G Active
Absorptive, SP2T Switch
Additional Documents
- Product Feature
- Test Report - 2/14/17
- PL20314 - Unit Data
- PL20315 - Unit Data
- PL20316 - Unit Data
- PL20317 - Unit Data
- PL20319 - Unit Data
- PL20320 - Unit Data
- PL20321 - Unit Data
- PL20322 - Unit Data
- PL20323 - Unit Data
- PL20324 - Unit Data
- PL20325 - Unit Data
- PL20326 - Unit Data
- PL20327 - Unit Data
- PL20328 - Unit Data
- PL20329 - Unit Data
- PL22062 - Unit Data
- PL22063 - Unit Data
- PL24880 - Unit Data
- PL24881 - Unit Data
- PL30437 - Unit Data
- PL30438 - Unit Data
- PL35144 - Unit Data
- PL35145 - Unit Data
- PL47894 - Unit Data

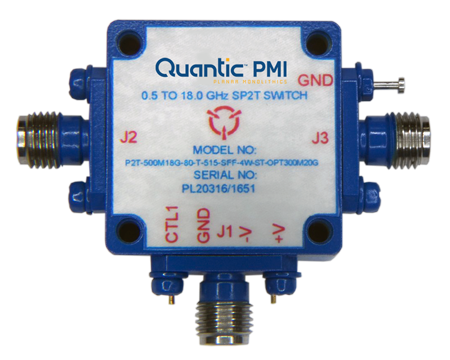

Quantic PMI Model P2T-500M18G-80-T-515-SFF-4W-ST-OPT300M20G is an absorptive, single pole, two throw switch that operates over the 0.3 to 20 GHz, frequency range. This model incorporates a TTL compatible driver for easy system integration. Package size is 1.0" x 1.0" x 0.4" with SMA (F) connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.3 to 20 |
| Frequency Min (GHz): | 0.3 |
| Frequency Max (GHz): | 20 |
| Insertion Loss (dB): | 4 dB Max |
| Insertion Loss - Typ (dB): | 4 dB |
| Isolation (dB): | 60 dB Min - Measured 74.72 dB |
| Isolation - Typ (dB): | 60 dB |
| Input Power (dBm): | 4 W CW Max |
| Switching Speed: | 60 ns Max - Measured 31.2 ns |
| Switching Speed (Typ): | 60 ns |
| Power Supply: | +5 VDC @ 150 mA - Measured 58 mA, -15 VDC @ 150 mA - Measured 75 mA |
| Control Signal: | TTL Logic |
| VSWR In/Out: | 2.0:1 Max - Measured 1.87:1 |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.00" x 1.00" x 0.40" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond B |
| Shock: | MIL-STD-202F, Method 213B Cond B |
| Vibration: | MIL-STD-202F, Method 204D Cond B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
