P2T-500M18G-80-T-55-SFF-1 Active
Absorptive SP2T Switch
Additional Documents
- Product Feature
- Test Report - 2/19/15
- PL21505 - Unit Data
- PL21506 - Unit Data
- PL22850 - Unit Data
- PL22851 - Unit Data
- PL25292 - Unit Data
- PL25336 - Unit Data
- PL25337 - Unit Data
- PL25419 - Unit Data
- PL25420 - Unit Data
- PL25421 - Unit Data
- PL25422 - Unit Data
- PL25445 - Unit Data
- PL25446 - Unit Data
- PL25447 - Unit Data
- PL25483 - Unit Data
- PL25484 - Unit Data
- PL30940 - Unit Data
- PL30941 - Unit Data
- PL30942 - Unit Data
- PL30943 - Unit Data
- PL30943-1 - Unit Data
- PL30944 - Unit Data
- PL30945 - Unit Data
- PL33624 - Unit Data
- PL33625 - Unit Data
- PL33626 - Unit Data
- PL33627 - Unit Data
- PL45583 - Unit Data
- PL45608 - Unit Data
- PL47895 - Unit Data
- PL49334 - Unit Data
- PL49335 - Unit Data
- PL49336 - Unit Data
- PL50174 - Unit Data
- PL50175 - Unit Data
- PL50176 - Unit Data

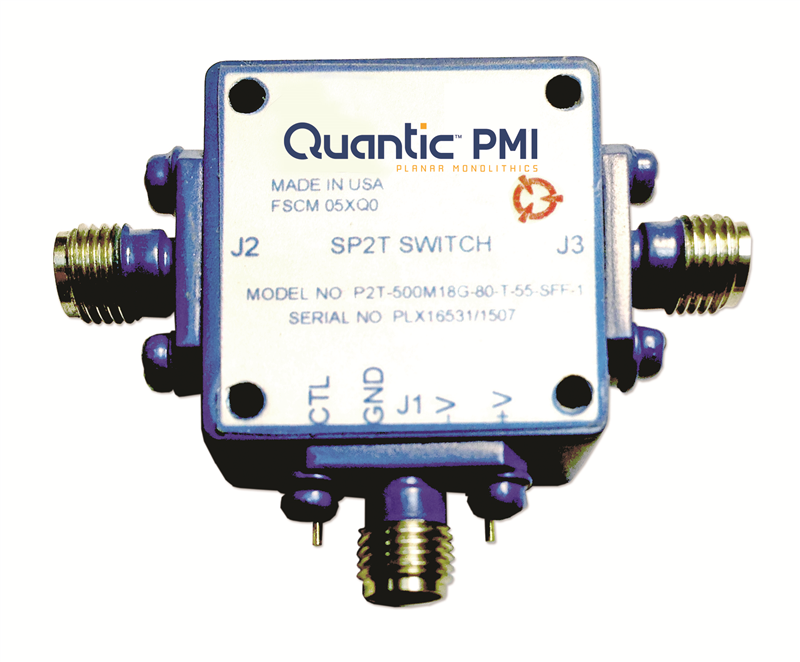

Quantic PMI Model P2T-500M18G-80-T-55-SFF-1 is an absorptive single pole, two throw switch that operates over the frequency range of 0.5 to 18 GHz. This model has a maximum insertion loss of 3.5 dB and an isolation specification of 80 dB. The typical switching speed is 25 ns and the unit is supplied with SMA (F) connectors in a housing measuring 1.2" x 1.0" x 0.5".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.5 dB Max |
| Insertion Loss - Typ (dB): | 3.5 dB |
| Isolation (dB): | 80 dB Typ |
| Isolation - Typ (dB): | 80 dB |
| Input Power (dBm): | 20 dBm CW |
| Survival Power: | 23 dBm CW |
| Switching Speed: | 50% TTL to 10%/90% RF, 25 ns Typ |
| Switching Speed (Typ): | 25 ns |
| Power Supply: | +5 VDC @ 65mA Max, -5V @ 50mA Max |
| Control Signal: | TTL Logic, "0" = J1-J2 On, "1" = J1-J3 On |
| VSWR In/Out: | 2.0:1 Max |
| Power & Control Connector: | Feedthru - Ø0.030 Typ |
| Connectors: | SMA Female |
| Size: | 1.2" x 1.0" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -45 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
