P2T-500M20G-50-R-SFF Active
SP2T Reflective Switch
Additional Documents
- Product Feature
- Test Report - 7/7/14
- PL15375 - Unit Data
- PL15376 - Unit Data
- PL15377 - Unit Data
- PL15378 - Unit Data
- PL15396 - Unit Data
- PL15397 - Unit Data
- PL15398 - Unit Data
- PL20409 - Unit Data
- PL23661 - Unit Data
- PL23663 - Unit Data
- PL23667 - Unit Data
- PL23662 - Unit Data
- PL23656 - Unit Data
- PL23660 - Unit Data
- PL23658 - Unit Data
- PL23664 - Unit Data
- PL23665 - Unit Data
- PL23666 - Unit Data
- PL23657 - Unit Data
- PL23659 - Unit Data

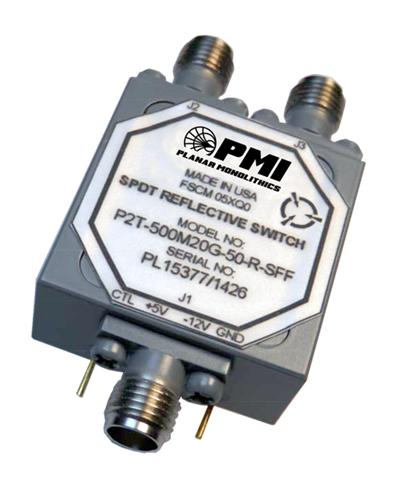

PMI Model P2T-500M20G-50-R-SFF is a 0.5 to 20.0GHz, single pole, two throw reflective switch that handles 23 dBm CW input power that has port to port isolation of 50 dB and low insertion loss while still offering a fast-switching speed of 50 ns. Supplied with SMA female connectors in a housing that measures 1.0" x 1.0" x 0.5".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 0.5 to 20 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 20 |
| Insertion Loss (dB): | 2.8dB Max |
| Insertion Loss - Typ (dB): | 2.8 dB |
| Isolation (dB): | 50 dB Min |
| Isolation - Typ (dB): | 50 dB |
| Input Power (dBm): | 23 dBm CW Max |
| Switching Speed: | 50 ns Max |
| Switching Speed (Typ): | 50 ns |
| Power Supply: | +5 VDC @ 80mA Typ, -12 VDC@ 80mA Typ |
| Control Signal: | TTL Logic, "0" = J1 to J2, "1" = J1 to J3 |
| VSWR In/Out: | 1.9:1 Max |
| Power & Control Connector: | EMI Filtered Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -45 to +90 ºC |
| Temperature (Storage): | -54 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. C |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Salt Fog: | MIL-STD-202F, Method 101D-EST Cond. B |
| Fungus: | MIL-STD-810F, Method 508.5 |
| EMI / EMC: | MIL-STD-461E |
