P2T-500M20G-50-T-5-12-SFF-I Active
Terminated, SP2T Switch

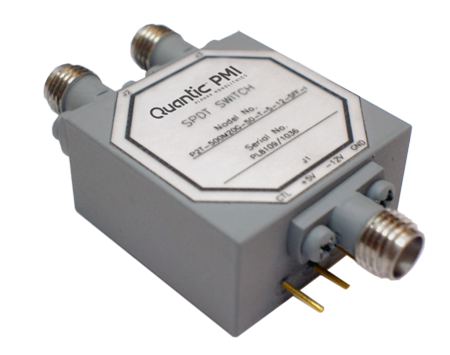

Quantic PMI Model P2T-500M20G-50-T-5-12-SFF-I is a terminated, single pole, double throw, switch that operates from 0.5 to 20 GHz which handles +23 dBm CW input power. This model has an In-Line Configuration. The port-to-port isolation is >50 dB. This model has low insertion loss while offering a fast-switching speed of 50 ns maximum. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.5 to 20 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 20 |
| Insertion Loss (dB): | 2.8 dB Max |
| Insertion Loss - Typ (dB): | 2.8 dB |
| Isolation (dB): | 50 dB Min - Measured 53.88 dB |
| Isolation - Typ (dB): | 50 dB |
| Input Power (dBm): | 23 dBm CW Max |
| Switching Speed: | 50 ns Max - Measured 37 ns |
| Switching Speed (Typ): | 50 ns |
| Power Supply: | 80 mA @ +5 VDC Typ - Measured 13 mA 80 mA @ -12 VDC Typ - Measured 68 mA |
| Control Signal: | TTL Logic, "0" = J1 to J2, "1" = J1 to J3 |
| VSWR In/Out: | 1.9:1 Max - Measured 1.85:1 |
| Power & Control Connector: | EMI Filtered Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0" x 0.5" |
| Weight: | 1.5 oz |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -45 ºC to +90 ºC |
| Temperature (Storage): | -54 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Salt Fog: | MIL-STD-202F, Method 101D-EST Cond B |
| Fungus: | MIL-STD-810F, Method 508.5 |
| EMI / EMC: | MIL-STD-461E |
