P2T-500M40G-60-R-55-292FF-OPT3040 Preliminary
SP2T Reflective Switch
Quantic PMI Model P2T-500M40G-60-R-55-292FF-OPT3040 is a reflective, single pole, two throw pin diode switch that operates over the 30.0 to 40.0 GHz, frequency range. This model incorporates a TTL compatible driver for easy system integration.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 30.0 to 40 |
| Frequency Min (GHz): | 30 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 3.5 dB Max |
| Isolation (dB): | 55 dB Min |
| Input Power (dBm): | 20 dBm CW Max |
| Survival Power: | 1 W Peak 1 µs |
| Switching Speed: | Rise: 15 ns Max, Fall: 15 ns Max, Delay On: 50 ns Max, Delay Off: 50 ns Max |
| Power Supply: | +5 VDC @ 200 mA Max, -5 V @ 100 mA Max |
| Control Signal: | TTL Logic |
| VSWR In/Out: | 2.5:1 Typ |
| Power & Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |

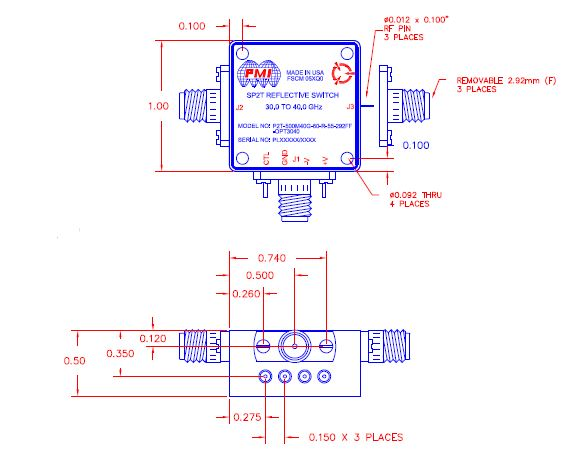

| Size: | 1.0" x 1.0" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40°C to +85ºC |
| Temperature (Storage): | -55ºC to +125ºC |
