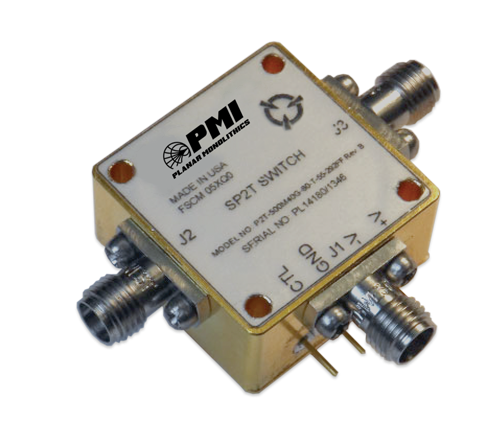

P2T-500M40G-60-T-55-292FF * Active
High-Speed SP2T Absorptive Switch
Buy Now
Additional Documents
- Product Feature
- S-Parameters
- Test Report (Including 100 Cycle Stability Test) - 10/27/19
- PL21580 - Unit Data
- PL21580-1 - Unit Data
- PL21631 - Unit Data
- PL21632 - Unit Data
- PL21633 - Unit Data
- PL21634 - Unit Data
- PL21739 - Unit Data
- PL21740 - Unit Data
- PL21741 - Unit Data
- PL21742 - Unit Data
- PL21742-1 - Unit Data
- PL21747 - Unit Data
- PL21748 - Unit Data
- PL21749 - Unit Data
- PL21750 - Unit Data
- PL21761 - Unit Data
- PL21762 - Unit Data
- PL21763 - Unit Data
- PL22391 - Unit Data
- PL22947 - Unit Data
- PL22972 - Unit Data
- PL22973 - Unit Data
- PL23493 - Unit Data
- PL23493-1 - Unit Data
- PL23853 - Unit Data
- PL23854 - Unit Data
- PL23855 - Unit Data
- PL23856 - Unit Data
- PL23857 - Unit Data
- PL24659 - Unit Data
- PL26402 - Unit Data
- PL26979 - Unit Data
- PL26980 - Unit Data
- PL26981 - Unit Data
- PL26982 - Unit Data
- PL26984 - Unit Data
- PL27885 - Unit Data
- PL28594 - Unit Data
- PL29841 - Unit Data
- PL29877 - Unit Data
- PL29878 - Unit Data
- PL30001 - Unit Data
- PL30753 - Unit Data
- PL31740 - Unit Data
- PL33931 - Unit Data
- PL33932 - Unit Data
- PL34838 - Unit Data
- PL35367 - Unit Data
- PL35368 - Unit Data
- PL38419 - Unit Data
- PL38420 - Unit Data
- PL43973 - Unit Data
- PL43974 - Unit Data
- PL45034 - Unit Data
- PL45035 - Unit Data
- PL50091 - Unit Data
- PL50850 - Unit Data
- PL55129 - Unit Data
- PL55130 - Unit Data
- PL92343 - Unit Data
- PL92344 - Unit Data
- PL92542 - Unit Data
- PL92543 - Unit Data
- PL92569 - Unit Data
- PL92570 - Unit Data
- PL92571 - Unit Data
- PL92572 - Unit Data
- PL92573 - Unit Data
- PL92574 - Unit Data
- PL92575 - Unit Data
- PL92576 - Unit Data
- PL92577 - Unit Data
- PL92578 - Unit Data
Quantic PMI Model P2T-500M40G-60-T-55-292FF is a 0.5 to 40.0 GHz, High-Speed Single Pole, Two Throw, Absorptive Switch with an isolation of 55 dB; an insertion loss of 6 dB; a VSWR of 2.2:1; and an input power of +20 dBm. This model incorporates a TTL compatible driver for easy system integration. Unit size is 1.00" x 1.00" x 0.50" and has 2.92 mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.5 to 40 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 6 dB Max |
| Isolation (dB): | 55 dB Min - Measured 70.87 dB |
| Input Power (dBm): | 20 dBm CW Max - Measured 20 dBm CW |
| Switching Speed: | 50 ns Max |
| Switching Speed (Typ): | 50 ns |
| Power Supply: | +5 VDC @ 200 mA - Measured 40 mA, -5 VDC @ 100 mA - Measured 30 mA |
| Control Signal: | TTL |
| VSWR In/Out: | 2.5:1 Max, 2.0:1 Typ - Measured 2.42:1 |
| Connectors: | 2.92mm Female |
| Size: | 1.0" x 1.0" x 0.5" |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
