P2T-500M4G-70-T-515-SFF-23DBM-ST-MVG Preliminary

Product Feature

PMI Model No. P2T-500M4G-70-T-515-SFF-23DBM-ST-MVG is an absorptive, single pole, two throw pin diode switch that operates over the 0.5 to 4.0 GHz frequency range. This model incorporates a TTL compatible driver for easy system integration.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 0.5 GHz
Frequency Max: 4.0 GHz
Reflective / Absorptive: Absorptive
Isolation: 70 dB min.
Insertion Loss: 1.5 dB max.
VSWR In/Out: 1.2:1 max.
Input Power: 23dBm CW min. - Hot Switching
Switching Speed: 60 ns max.
Control Signal: TTL Logic
Connectors: SMA (F)
Power & Control Connector: Solder Pins

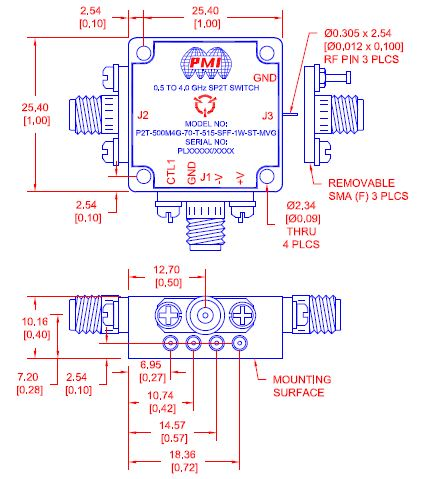

Size: 1.00" x 1.00" x 0.40"
Finish: Painted Blue
DC Voltage & Current: +5 V @ 150 mA
-15 V @ 150 mA
Environmental Ratings:
Temperature (Operating): -40°C to +85°C
Temperature (Storage): -55°C to +125°C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
