P2T-50M40G-95-T-515-SFF-OPT18G Active
Absorptive SP2T Pin Diode Switch
Additional Documents
- Product Feature
- Test Report - 3/13/17
- PL20265 - Unit Data
- PL20266 - Unit Data
- PL20268 - Unit Data
- PL20269 - Unit Data
- PL20270 - Unit Data
- PL20271 - Unit Data
- PL20272 - Unit Data
- PL20273 - Unit Data
- PL20273-1 - Unit Data
- PL27820 - Unit Data
- PL27821 - Unit Data
- PL27822 - Unit Data
- PL33914 - Unit Data
- PL33915 - Unit Data
- PL33916 - Unit Data

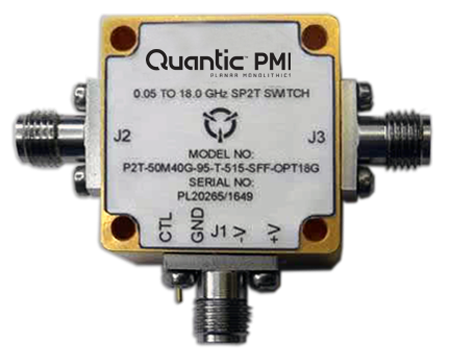

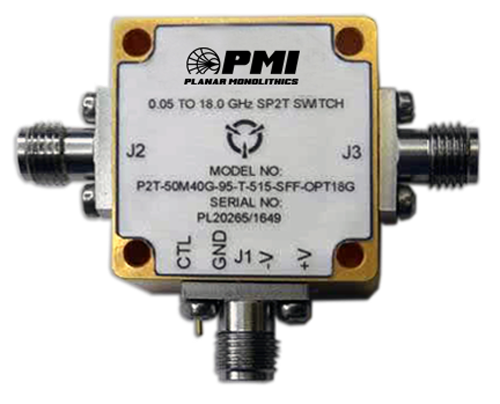

PMI Model P2T-50M40G-95-T-515-SFF-OPT18G is an absorptive, single pole, two throw, pin diode switch that operates over the 0.05 to 18 GHz frequency range and incorporates a TTL compatible driver for easy system integration. Gold plated housing measuring 1.0" x 1.0" x 0.5" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 0.05 to 18 |
| Frequency Min (GHz): | 0.05 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 4 dB Typ |
| Insertion Loss - Typ (dB): | 4 dB |
| Isolation (dB): | 100 dB Typ |
| Isolation - Typ (dB): | 100 dB |
| Input Power (dBm): | 20 dBm CW Max |
| Switching Speed: | 100 ns Max |
| Switching Speed (Typ): | 100 ns |
| Power Supply: | +5 VDC @ 120 mA Typ, -15VDC @ 65mA Typ |
| Control Signal: | 2 Line TTL |
| VSWR In/Out: | 2.5:1 Max, 2.0:1 Typ |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.0" x 1.0" x 0.5" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Salt Fog: | MIL-STD-202F, Method 107D Cond A |
| Fungus: | MIL-STD-810C, Method 508.2 |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
