P2T-612-80-T-1W-SFF-2 Preliminary
SP2T Absorptive Switch

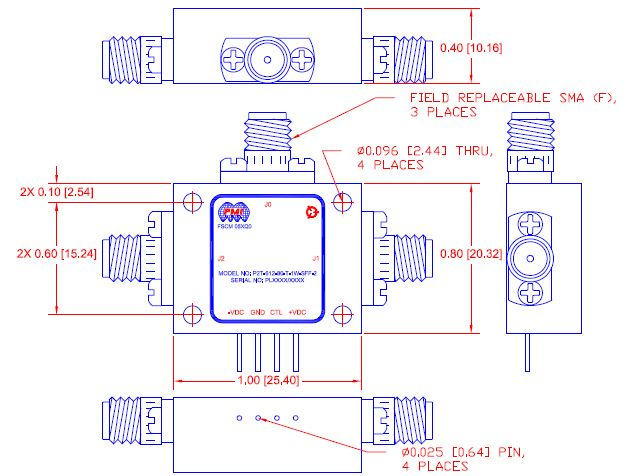

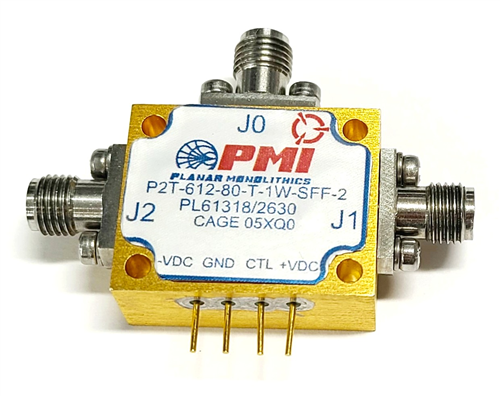

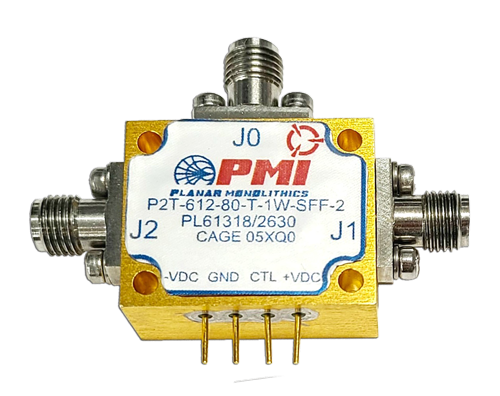

Quantic PMI Model P2T-612-80-T-1W-SFF-2 is an absorptive, single pole two throw switch that operates over the 6 to 12 frequency range and features low insertion loss with 1 W operational power handling. Housing size is 1.0" x 0.8" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 6 to 12 |
| Frequency Min (GHz): | 6 |
| Frequency Max (GHz): | 12 |
| Insertion Loss (dB): | 2 dB Max |
| Insertion Loss - Typ (dB): | 2 dB |
| Isolation (dB): | 80 dB Min |
| Input Power (dBm): | 30 dBm CW Min |
| Switching Speed: | 150 ns Max |
| DC Power Supply: | ±5 VDC |
| Control Voltage: | +5 VDC TTL |
| VSWR On/Off: | 1.5: Max |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.0" x 0.8" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -55 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
