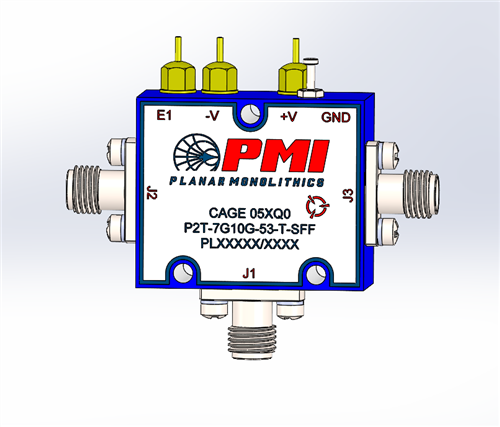

P2T-7G10G-53-T-SFF Preliminary
SP2T Absorptive Switch
PMI Model P2T-7G10G-53-T-SFF is a SPDT absorptive (non-reflective) pin diode switch designed for the 7 to 10 GHz frequency range. It features 3.5 dB insertion loss, 5 mV video transients, and 20 dBm CW power handling.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP2T |
| Reflective / Absorptive: | Absorptive |
| Frequency Range (GHz): | 7 to 10 |
| Frequency Min (GHz): | 7 |
| Frequency Max (GHz): | 10 |
| Insertion Loss (dB): | 3.5 dB Max |
| Isolation (dB): | 53 dB Min |
| Power Handling: | 20 dBm CW Max |
| Rise/Fall Time: | 10 ns Max |
| Delay On/Off: | 30 ns Max |
| DC Power Supply: | +5 VDC ± 5% @ 65 mA Max -5 VDC ± 5% @ 50 mA Max |
| VSWR: | 2.0:1 Max |
| Video Transients: | 5 mV Peak to Peak Max @ 20 MHz BW |
| Size: | 1.20" x 1.00" x 0.50" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -65 ˚C to +110 ˚C |
| Temperature (Storage): | -65 ˚C to +125 ˚C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
