P2T-7G18G-60-T-2W Active

Terminated, SP2T Switch

P2T-7G18G-60-T-2W
Product Feature

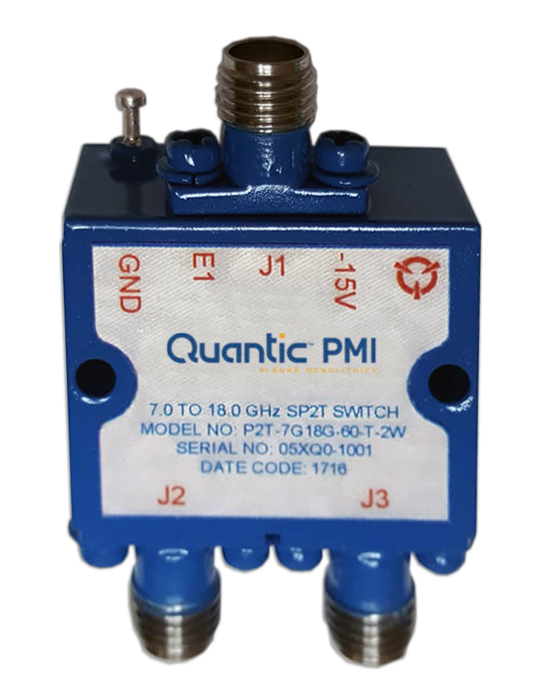

Quantic PMI Model P2T-7G18G-60-T-2W is a terminated, single pole, two throw switch that operates over the frequency range of 7 to 18 GHz which handles 2-watt CW input power with port-to-port isolation of 60 dB minimum and has a low insertion loss of 3 dB maximum while still offering a fast-switching speed of 500 ns maximum. Supplied with SMA female connectors in a housing measuring 1.0" x 0.8" x 0.5".

Product Specifications

General Parameters:
Status: Active
Configuration: SP2T
Reflective / Absorptive: Absorptive
Frequency Range (GHz): 7 to 18
Frequency Min (GHz): 7
Frequency Max (GHz): 18
Insertion Loss (dB): 3 dB Max
Insertion Loss - Typ (dB): 3 dB
Isolation (dB): 60 dB Min - Measured 73.5 dB
Isolation - Typ (dB): 60 dB
Input Power (dBm): 2 W (30 % Duty Cycle, 130 µs Pulse Width)
Command Logic: TTL
Switching Speed: 500 ns Max
Switching Speed (Typ): 100 ns
Delay On/Off: 500 ns Max - Measured 55 ns
DC Power Dissipation: 1.25 W
VSWR In/Out: 1.6:1 Max (Port Selected) - Measured 1.57:1 2.0:1 Max (Port Not Selected)*** - Measured 1.88:1
Power & Control Connector: Solder Pins
Connectors: SMA Female
Size: 1.00" x 0.80" x 0.50"
25.40 mm x 20.32 mm x 12.70 mm
Finish: Painted Blue
Weight: 0.13 lbs Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -30 ºC to +85 ºC
Temperature (Storage): -55 ºC to +95 ºC
Humidity: MIL-STD-810, Method 507.5, Procedure II
Shock: MIL-STD-810, Method 516, Procedure I
Altitude: MIL-STD-202, Method 105 (50, 000 ft)
Temperature Cycle: MIL-STD-202, Method 107D, Cond A
