P2T-8G12G-40-R-570-TFF-1D5KW-120W Active
Reflective SP2T High Power Switch
Additional Documents

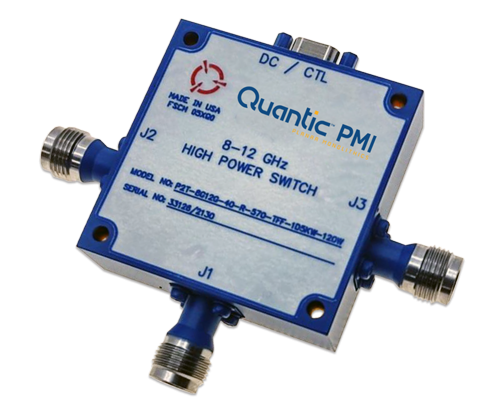

Quantic PMI Model P2T-8G12G-40-R-570-TFF-1D5KW-120W is a reflective 1.5 kilowatt high-power cold switching single pole double throw switch operating in the 8 to 12 GHz frequency range; power handling of 1.5 kW Peak (120 W CW); a typical switching speed of 1.1 µs. Unit offers TNC female connectors, a 9-Pin Micro-D female connector for power/control in a housing measuring 2.00” x 2.00” x 0.75”.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | 8 to 12 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 12 |
| Insertion Loss (dB): | 2 dB Max |
| Isolation (dB): | 40 dB Typ |
| Input Power (dBm): | 1.5 kW Peak (120 W CW) |
| Power: | 1.5 kW Peak (120 W CW) |
| Duty Cycle: | 8% |
| Switching Speed: | 1.25 µs Max, 1.1 µs Typ |
| Pulse Width: | 250 ns Max |
| DC Voltage & Current: | +5 VDC @ 300 mA -70 VDC @ 60 mA |
| Control: | Single TTL (TTL "0" J1-J3 Low Loss) |
| VSWR In/Out: | 1.8:1 Max |
| Load VSWR: | >1.5:1 |
| Power & Control Connector: | 9 Pin Micro D Type (Female), Mating with M83513/03A/03C |
| Connectors: | TNC Female |
| Size: | 2.00" x 2.00" x 0.75" |
| Finish: | Painted Blue (No Paint on Mounting Surface) |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Environmental: | MIL-STD-810E |
| EMI / EMC: | MIL-STD-461 |
