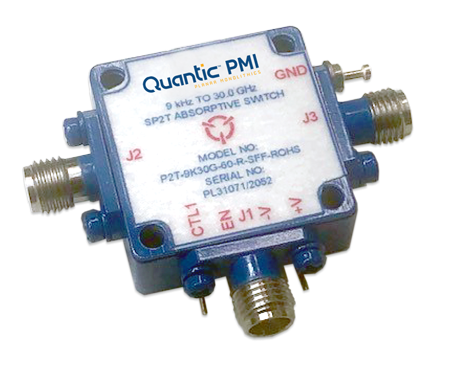

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Min: | 9 kHz |
|---|
| Frequency Max: | 30 GHz |
|---|
| Insertion Loss (Typ): | 2.75 dB |
|---|
| Isolation (Typ): | 50 dB |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Isolation: | Between J1 & J2/J3: 55 dB Min (9 kHz to 10.0 GHz),
48 dB Min (10.0 to 20.0 GHz),
45 dB Min (20.0 GHz to 30.0 GHz)
Between J2 & J3: 60 dB Min (9 kHz to 10.0 GHz),
50 dB Min (10.0 to 20.0 GHz),
50 dB Min (20.0 to 30.0 GHz) |
|---|
| Insertion Loss: | 2.00 dB Max (9 kHz to 10.0 GHz)
2.75 dB Max (10.0 to 20.0 GHz)
3.50 dB Typ, 3.80 dB Max (20.0 to 30.0 GHz) |
|---|
| Input Power: | +29 dBm Max |
|---|
| Switching Speed: | Rise and Fall Time: 1.0 µs Max (10% to 90% of RF Output)
On and Off Time: 3.5 µs Typ, 4 µs Max (50% TTL to 90% of RF Output)
RF Settling Time: 6.2 µs Typ (50% Vctl to 0.1 dB of Final RF Output),
10 µs Typ (50% Vctl to 0.05 dB of Final RF Output)
Hot Switching: +18 dBm Typ |
|---|
| Rise/Fall Time: | 1.0 µs Max |
|---|
| Power Supply: | +V = +3.3 VDC @ 300 µA to +5 VDC @ 600 µA Max
-V = -2.5 VDC@ 10 µA Max
CTL1=EN=+V @ 1 µA Typ |
|---|
| Connectors: | RF: 2.92 mm Female
Control: Solder Pins |
|---|
| Size: | 25.40 mm x 25.40 mm x 10.16 mm
1.00" x 1.00" x 0.40" |
|---|
| Finish: | Painted Blue |
|---|
| RF Settling Time: | 6.2 µs Typ (50% Vctl to 0.1 dB of final RF output
10 µs Typ (50% Vctl to 0.05 dB of final RF output |
|---|
| Hot Switching: | +18 dBm Typ |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 °C to + 85 °C |
|---|
| Temperature (Storage): | -55 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond A |
|---|
