P2T-DC18G-10-R-5V-SFF-HIP10W Active
SP2T Reflective Pin Diode Switch

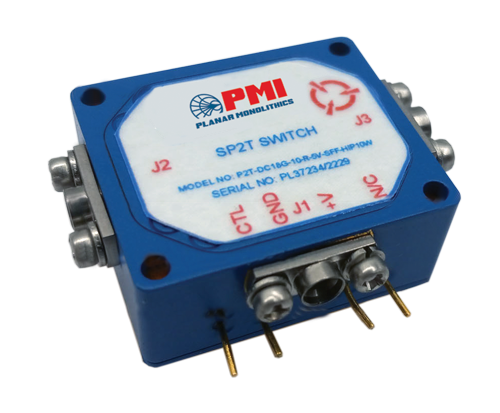

PMI Model P2T-DC18G-10-R-5V-SFF-HIP10W is a Single Pole, Two Throw, Reflective Pin Diode Switch with a frequency range of DC to 18 GHz with an isolation of 22.87 dB; an insertion loss of 2.01 dB; a VSWR of 1.69:1; and an operating input power of 5 W. This model incorporates a TTL compatible driver for easy system integration with SMP connectors and housing that measures 1.2" x 1.0" x 0.5".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP2T |
| Reflective / Absorptive: | Reflective |
| Frequency Range (GHz): | DC to 18 |
| Frequency Min (GHz): | DC |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 4 dB Max 3 dB Goal |
| Insertion Loss - Typ (dB): | 4 dB |
| Isolation (dB): | 10 dB Min |
| Input Power (dBm): | 5 W CW Max |
| Operating Input Power: | 5 W CW Max (NOT to be Switched Any Higher Than 50 kHz [PRI)) |
| Impedance: | 50 Ohm |
| Switching Speed: | 100 ns |
| RF Switching Speed: | 100 ns Goal (At Low Power) |
| DC Voltage & Current: | +5 to +12 VDC @ 50 mA Max |
| Control Signal: | TTL Logic See Logic Table |
| 1 dB Compression: | +40 dBm Goal |
| VSWR In/Out: | 2.0:1 Max |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMP Female - removable (DC Coupled) |
| Finish: | Painted Blue Bottom Side - Unpainted |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -54 °C to +100 °C |
| Temperature (Storage): | -55 °C to +125 °C |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107 |
