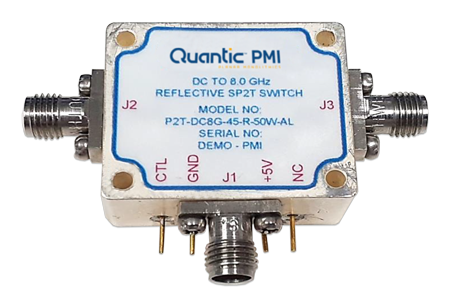

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency Range (GHz): | DC to 8 |
|---|
| Frequency Min (GHz): | DC |
|---|
| Frequency Max (GHz): | 8 |
|---|
| Insertion Loss (dB): | 10 dB Max, 0.8 dB Typ (0.01 to 0.5 GHz),
1.2 dB Max, 10 dB Typ (0.5 to 1 GHz),
1.4 dB Max, 10 dB Typ (1 to 2 GHz),
1.8 dB Max, 1.5 dB Typ (2 to 4 GHz),
2.3 dB Max, 20 dB Typ ( 4 to 6 GHz),
2.8 dB Max, 2.5 dB Typ (6 to 8 GHz) |
|---|
| Insertion Loss - Typ (dB): | 1.5 dB |
|---|
| Isolation (dB): | 53 dB Min, 58 dB Typ (0.01 to 0.5 GHz),
50 dB Min, 52 dB Typ (0.5 to 1 GHz),
44 dB Min, 47 dB Typ (1 to 2 GHz),
40 dB Min, 42 dB Typ (2 to 4 GHz),
37 dB Min, 40 dB Typ (4 to 6 GHz),
36 dB Min, 40 dB Typ (6 to 8 GHz) |
|---|
| Input Power (dBm): | 50 W Average (Cold Switching) |
|---|
| Switching Speed: | 100 ns Max |
|---|
| Hot Switching: | 50 W (CW) Max (1 KHz, 50% Duty Cycle, @ 20 MHz)
40 W (CW) Max (1 KHz, 50% Duty Cycle, @ 0.1 to 8 GHz)
20 W (CW) Max (1 MHz, 50% Duty Cycle, @ 20 MHz)
16 W (CW) Max (1 MHz, 50% Duty Cycle, @ 0.1 to 0.5 GHz)
10 W (CW) Max (1 MHz, 50% Duty Cycle, @ 8 GHz) |
|---|
| Power Supply: | +5 VDC @ 100 mA Max |
|---|
| Control: | TTL |
|---|
| VSWR: | 1.4:1 Max, 1.2:1 Typ (0.01 to 0.5 GHz),
1.5:1 Max, 1.3:1 Typ (0.5 to 2 GHz),
1.6:1 Max, 1.4:1 Typ (2 to 4 GHz),
1.8:1 Max, 1.6:1 Typ (4 to 6 GHz),
1.8:1 Max, 1.6:1 Typ (6 to 8 GHz) |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female - Field Replaceable |
|---|
| Finish: | Painted Blue (No paint on mounting surface) |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -45 °C to +85 °C |
|---|
| Temperature (Storage): | -54 °C to +125 °C |
|---|
| Environmental: | MIL-STD-810E |
|---|
| EMI / EMC: | MIL-STD-461 |
|---|
