P32T-0R1G18G-60-T-SFF Preliminary
High Speed SP32T Absorptive Switch

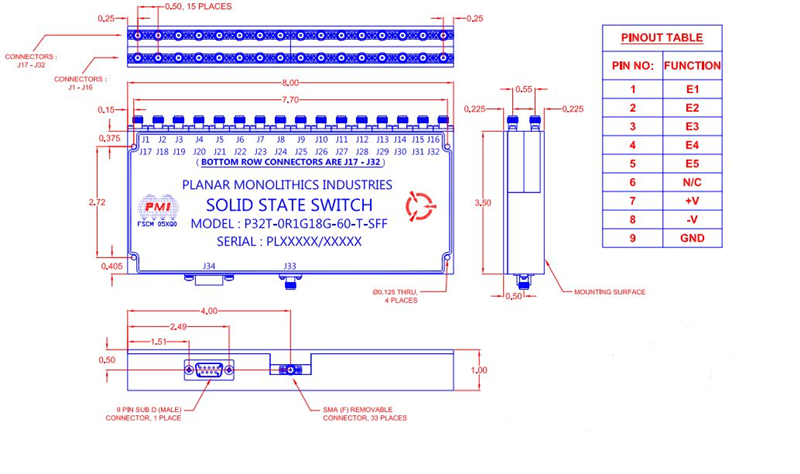

Quantic PMI Model P32T-0R1G18G-60-T-SFF is an absorptive, single pole, thirty two throw, high speed, solid state switch that operates over the 0.1 to 18 GHz frequency range and offers low insertion loss and high isolation. Supplied in a compact housing measuring 8.0" x 3.5" x 1.0" with 9 Pin Sub D male connector for power/control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP32T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 18 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 9.5 dB Max |
| Insertion Loss - Typ (dB): | 9.5 dB |
| Isolation (dB): | 60 dB Min (0.5 to 2 GHz), 70 dB Min (2 to 18 GHz) |
| Isolation - Typ (dB): | 70 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 30 dBm CW Max |
| Control Signal: | 5 Bit Decoded TTL - See Product Feature |
| Power Supply: | +5 VDC @ 1 A -15 VDC @ 1 A |
| Power / Control Connector: | 9 Pin Sub D Male (Mating Connector Supplied) |
| Connectors: | SMA Female - removable |
| Size: | 8.0" x 3.5" x 1.0" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
