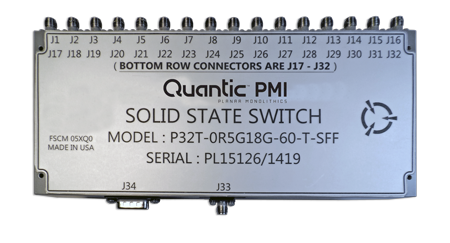

P32T-0R5G18G-60-T-SFF Active

High Speed, SP32T, Absorptive Switch

Product Feature

Quantic PMI Model No. P32T-0R5G18G-60-T-SFF is a High Speed, Single Pole, Thirty-Two Throw, Absorptive Switch that operates over 500 MHz to 18.0 GHz. This State-Of-The-Art Switch offers top notch performance of 8.5 dB typical insertion loss and an isolation of 78 dB typically. The switch maintains 2.0:1 maximum VSWR over the full operating frequency with a maximum switching speed of 100 ns. The operating input power rating is +20 dBm CW and the switch is controlled via 5-Bit Decoded TTL. The required DC Supply is ±5 VDC and the housing measures 8.0” x 3.5” x 1.0”.

Product Specifications

General Parameters:
Status: Active
Frequency: 0.5 to 18.0 GHz
Frequency Min: 0.5 GHz
Frequency Max: 18 GHz
Insertion Loss (Typ): 9.5 dB
Isolation (Typ): 60 dB
Reflective / Absorptive: Absorptive
Switching Speed (Typ): 100 ns
Configuration: SP32T
Isolation: 60 dB Min (0.5 to 2.0 GHz) - measured 77.39 dB
70 dB Min (2.0 to 18.0 GHz)
Insertion Loss: 9.5 dB Max - measured 8.66 dB
VSWR In/Out: 2.0:1 Max - measured 1.99:1
Input Power: 20 dBm CW Max (Operating)
Survival Power: 1 Watt CW, 10 Watts Peak, 1 µs
Switching Speed: 100 ns Max - measured 85 ns
Control Signal: 5-Bit Decoded TTL
Power Supply: +5 VDC @ 1600 mA - measured 1450 mA
-5 VDC @ 20 mA - measured 100 mA
Connectors: SMA (F)
Power & Control Connector: 9 Pin Sub D Male
Size: 8.0" x 3.5" x 1.0"
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
