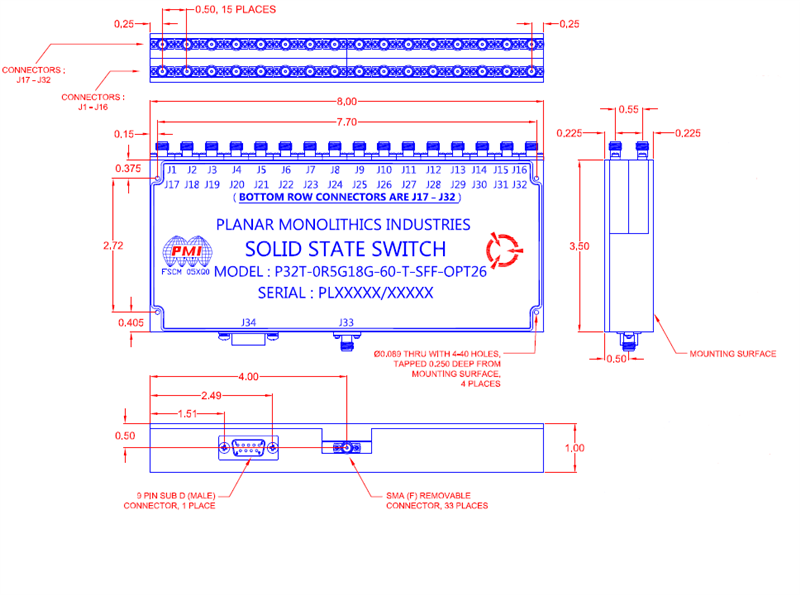

PMI Model No. P32T-0R5G18G-60-T-SFF-OPT26 is a High Speed, Single Pole, Thirty-Two Throw, Absorptive Switch that operates over 2.0 to 6.0 GHz. This State-Of-The-Art Switch offers top notch performance of 5 dB maximum insertion loss and an isolation of 90 dB minimum. The switch maintains 2.0:1 maximum VSWR over the full operating frequency with a maximum switching speed of 100 nsec. The operating input power rating is +20dBm CW and the switch is controlled via 5-Bit Decoded TTL. The required DC Supply is ±5 VDC and the housing measures 8.0” x 3.5” x 1.0”.
