P32T-0R5G18G-60-T-SFF-OPT8 Preliminary
High Speed SP32T Absorptive Switch

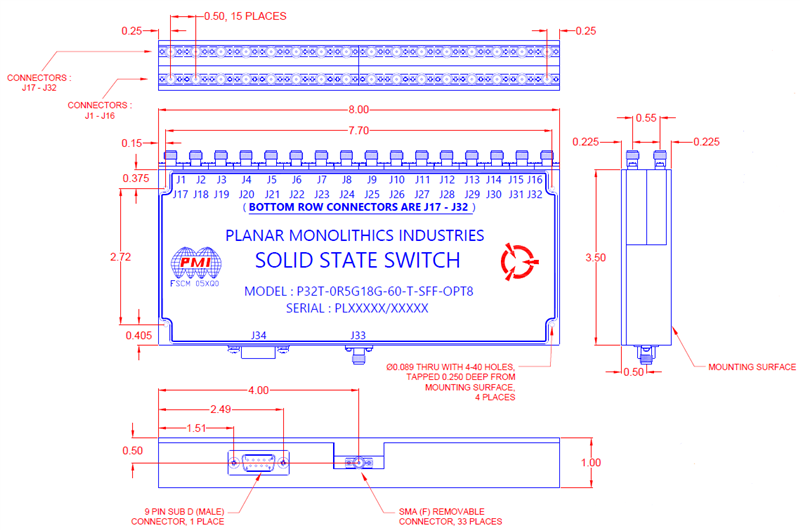

Quantic PMI Model P32T-0R5G18G-60-T-SFF-OPT8 is an absorptive, sing pole, thirty two way, high speed solid state switch that operates over 0.5 to 8 GHz with low loss and high isolation. Supplied in a compact housing measuring only 8.0" x 3.5" x 1.0" with 9 Pin Sub D male connector for power/control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP32T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 8 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 8 |
| Insertion Loss (dB): | 7 dB Max |
| Insertion Loss - Typ (dB): | 7 dB Max |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB Min |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm CW Max (Operating) |
| Survival Power: | 1 W CW, 10 W Peak, 1 µs |
| Control Signal: | Decoded - See Product Feature |
| Power / Control Connector: | 9 Pin Sub D Male |
| Connectors: | SMA Female |
| Size: | 8.0'' x 3.5'' x 1.0'' |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
