P3T-0D5G18G-70-R-SFF Preliminary
SP3T Reflective Switch

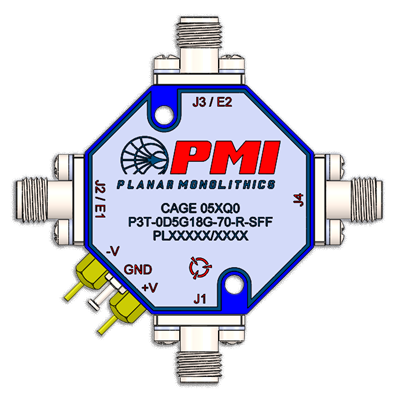

PMI Model P3T-0D5G18G-70-R-SFF is a 0.5 to 18 GHz, SP3T, reflective switch featuring 2.75 dB insertion loss, 70 dB isolation, and 10 W peak power handling. Housing size is 1.25" x 1.25" x 0.7" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP3T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 2.75 dB Max |
| Isolation (dB): | 70 dB Min |
| VSWR In/Out: | 2.0:1 Max |
| Power Supply: | +19 VDC @ 150 mA Max -19 VDC @ 100 mA Max |
| Power Input (Operating): | 20 dBm CW |
| Rise Time: | 10 ns Typ 15 ns Max |
| Fall Time: | 10 ns Typ 15 ns Max |
| Delay On: | 75 ns Typ 100 ns Max |
| Delay Off: | 75 ns Typ 100 ns Max |
| Power Handling: | 1 W CW Max 10 W Peak Max (1 us PW) |
| RF Connectors: | SMA Female |
| Size: | 1.25" x 1.25" x 0.7" |
| Finish: | Painted Blue |
| Environmental Ratings: | |
| Operating Temperature: | -40 ˚C to +85 ˚C |
| Non-Operating Temperature: | -65 ˚C to +125 ˚C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
