P3T-0R5G18G-55-R-SFF-PN-HERM Preliminary
SP3T Reflective Switch

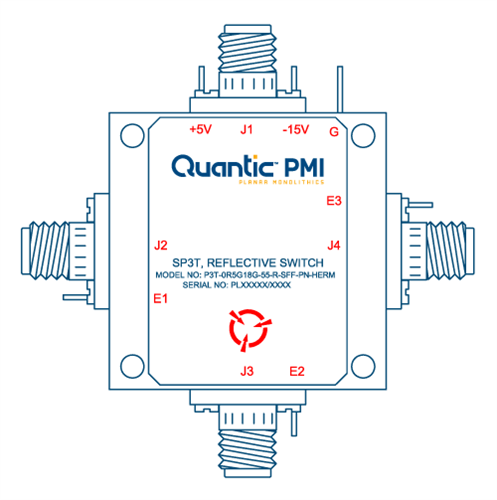

Quantic PMI Model P3T-0R5G18G-55-R-SFF-PN-HERM is a single pole, three throw, reflective switch designed to operate over the 0.5 to 18 GHz frequency range and to maintain low insertion loss, high isolation, and fast switching speed. Housing size is 1.2" x 1.2" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP3T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.2 dB Typ |
| Isolation (dB): | 55 dB Min |
| Switching Speed: | 100 ns Max |
| VSWR In/Out: | 2.0:1 Max |
| Control Signal: | TTL Logic |
| Power Supply: | +5 VDC @ 120 mA Nom -15 VDC @ 50 mA Nom |
| Power Input (Operating): | 20 dBm CW Max |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.2" x 1.2" x 0.5" |
| Finish: | Painted Blue - Hermetically Sealed |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55°C to +125°C |
