P3T-0R5G4G-60-T-SFF-27DBM Preliminary
SP3T Non-Reflective Switch
Quantic PMI Model P3T-0R5G4G-60-T-SFF is a single pole, three throw, non-reflective switch designed to operate over the 0.5 to 4 GHz frequency range that is designed to maintain low insertion loss, high isolation and fast switching speed. This model offers low video transient performance of 50 mV maximum. Housing size is 1.5" x 1.0" x 0.4" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP3T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 4 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 4 |
| Insertion Loss (dB): | 2.5 dB Max (0.6 to 2.5 GHz), 3 dB Max (0.5 to 4 GHz) |
| Insertion Loss - Typ (dB): | 3 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 15 ns Typ (Rise/Fall) 50 ns Typ (Delay On/Off) |
| Switching Speed - Typ: | 50 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 27 dBm CW Max |
| Survival Power: | 30 dBm CW Max |
| Video leakage: | 50 mV @ 350 MHz BW Max (1 & 2) |
| Control Signal: | TTL Logic, "1" = "Low Loss", "0" = "Isolation", Pins E1, E2 and E3 are pulled low "0" |
| Power Supply: | +5 VDC @ 150 mA Nom, -12 @ 80 mA Nom |
| Sealing: | Hermetic |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Features: | Low Insertion Loss, High Isolation, Fast Switching Speed, Low Video Leakage, Small Size, Independent TTL Control |

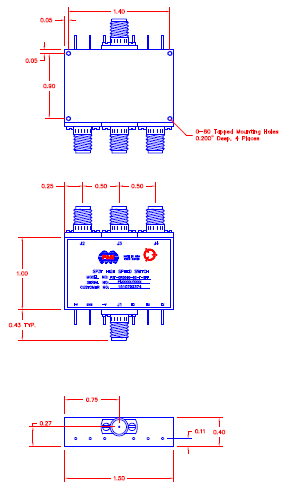

| Size: | 1.50" x 1.00" x 0.40" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -45 °C to +90 °C |
| Non-Operating Temperature: | -54 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Salt Fog: | MIL-STD-202F, Method 101D+EST Cond B |
| Fungus: | MIL-STD-810F, Method 508.5 |
