P3T-0R5G4G-60-T-SFF-DEC Preliminary
SP3T Terminated Switch
Quantic PMI Model P3T-0R5G4G-60-T-SFF-DEC is a single pole, three throw, terminated switch operates over the 0.5 to 4 GHz frequency range that utilizes a 2-Bit decoded TTL control and is designed to maintain low insertion loss, high isolation, and fast switching speeds. Housing size is 1.5" x 1.0" x 0.4" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP3T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 4 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 4 |
| Insertion Loss (dB): | 2.5 dB Max (0.6 to 2.5 GHz), 3 dB Max (0.5 to 4 GHz) |
| Insertion Loss - Typ (dB): | 3 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 50 ns Max (On/Off) 15 ns Max (Rise/Fall) |
| Switching Speed - Typ: | 50 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 10 dBm CW Max |
| Video Transient: | 50 mV @ 350 MHz BW Max |
| Control Signal: | 2-Bit Decoded TTL |
| Power Supply: | +5 VDC @ 150 mA Nom, -12 @ 80 mA Nom |
| Sealing: | HERMETIC |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Features: | Low Insertion Loss, High Isolation, Fast Switching Speed, Low Video Leakage, Small Size, 2-Bit Decoded TTL Control |

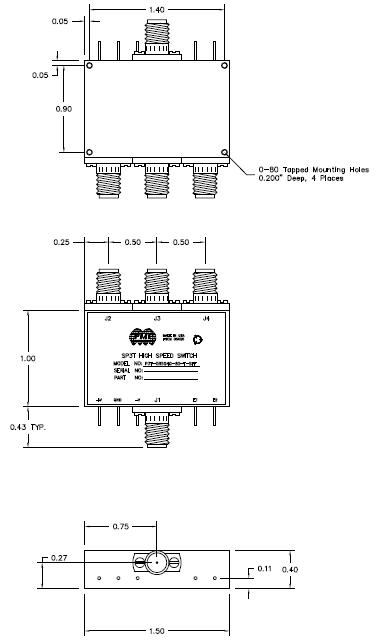

| Size: | 1.50" x 1.00" x 0.40" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -45 °C to +90 °C |
| Non-Operating Temperature: | -54 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
