P3T-10M1G-60-R-SFF *

Buy Now

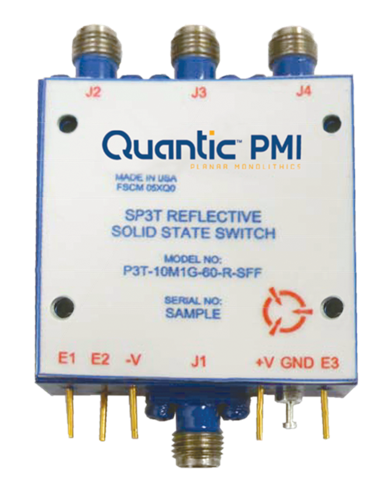

PMI Model No. P3T-10M1G-60-R-SFF is a Reflective, High Speed, Single Pole Three Throw Switch capable of switching within 200ns maximum. The frequency range is 0.010 to 1.0 GHz. This switch has 60 dB isolation.

Product Specifications

General Parameters:
Status: Active
Frequency: 0.010 to 1.0 GHz
Frequency Min: 0.01 GHz
Frequency Max: 1 GHz
Insertion Loss (Typ): 1 dB
Isolation (Typ): 60 dB
Reflective / Absorptive: Reflective
Switching Speed (Typ): 200 nsec
Configuration: SP3T
Isolation: 60 dB min - Measured 80.0 dB
Insertion Loss: 1.0 dB typ - Measured 0.49 dB
VSWR In/Out: 1.5:1 typ - Measured 1.21:1
Input Power: +30 dBm max (Survival), +20 dBm max (Operating)
Switching Speed: 200 ns max - Measured 49.6 ns
Impedance: 50 ?
Control Signal: Solder Pin, TTL Compatible
Power Supply: +5 VDC, 150 mA typ - Measured 77 mA, -15 VDC, 75 mA typ - Measured 30 mA
Connectors: SMA(F)
Size: 1.5" x 1.5" x 0.4"
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -55 to +85 ºC
Non-Operating Temperature: -65ºC to +125ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
