P3T-1G2G-60-R-SFF-OPT0R91D56 Preliminary
SP3T Reflective Switch

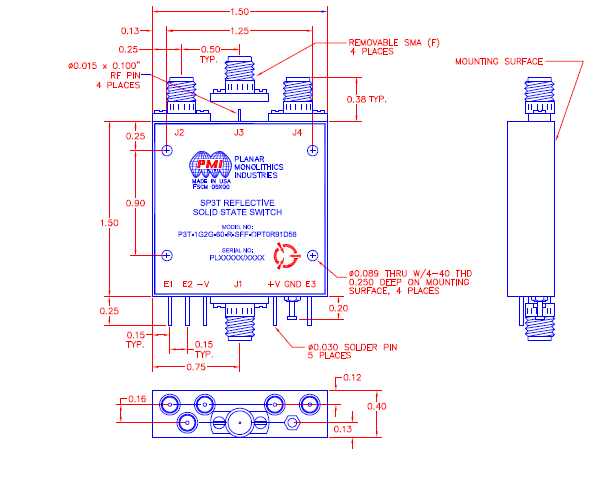

Quantic PMI Model P3T-1G2G-60-R-SFF-OPT0R91D56 is a Reflective, High Speed, Single Pole Three Throw Switch capable of switching within 100 ns maximum with an operating frequency range of 0.9 to 1.5 GHz and has 60 dB isolation. Housing size is 1.5" x 1.5" x 0.4" and is outfitted with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP3T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 0.9 to 1.5 |
| Frequency Min (GHz): | 0.9 |
| Frequency Max (GHz): | 1.5 |
| Insertion Loss (dB): | 1 dB Typ |
| Insertion Loss - Typ (dB): | 1 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 1.5:1 Typ |
| Input Power: | 20 dBm Max |
| Survival Power: | 30 dBm CW Max |
| Impedance: | 50 Ohm |
| Control Signal: | TTL Compatible |
| Power Supply: | +5 VDC, 150 mA Typ, -15 VDC, 75 mA Typ |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.5" x 1.5" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
