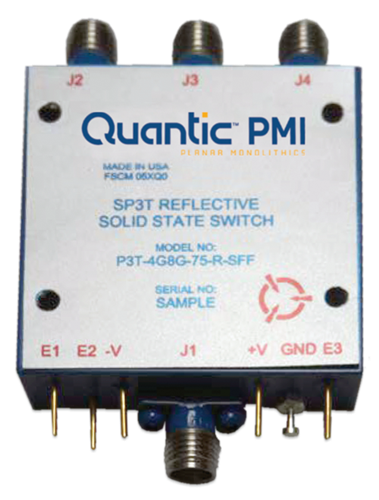

General Parameters: |
Status: | Active |
Frequency: | 4.0 to 8.0 GHz |
Frequency Min: | 4 GHz |
Frequency Max: | 8 GHz |
Insertion Loss (Typ): | 2 dB |
Isolation (Typ): | 75 dB |
Reflective / Absorptive: | Reflective |
Switching Speed (Typ): | 100 nsec |
Configuration: | SP3T |
Isolation: | 75 dB typ - Measured 88 dB |
Insertion Loss: | 2.0 dB typ - Measured 1.4 dB |
VSWR In/Out: | 1.6:1 typ - Measured 1.5:1 |
Input Power: | +30 dBm max (Survival), +20 dBm max (Operating) |
Switching Speed: | 100 ns max - Measured 23 ns |
Impedance: | 50 O |
Control Signal: | Solder Pin, TTL Compatible |
Power Supply: | +5 VDC, 100 mA typ - Measured 150 mA, -15 VDC, 75 mA typ - Measured 31 mA |
Connectors: | SMA(F) |
Size: | 1.5" x 1.5" x 0.4" |
Finish: | Painted Blue |
Environmental Ratings: |
Operating Temperature: | -55 to +85 ºC |
Non-Operating Temperature: | -65ºC to +125ºC |
Humidity: | MIL-STD-202, Method 103B Cond. B |
Shock: | MIL-STD-202, Method 213B Cond. B |
Vibration: | MIL-STD-202, Method 204D Cond. B |
Altitude: | MIL-STD-202, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
