General Parameters: |
Status: | Active |
Frequency: | 6.0 to 18.0 GHz |
Frequency Min: | 6 GHz |
Frequency Max: | 18 GHz |
Insertion Loss (Typ): | 1.25 dB |
Isolation (Typ): | 30 dB |
Reflective / Absorptive: | Reflective |
Switching Speed (Typ): | 100 nsec |

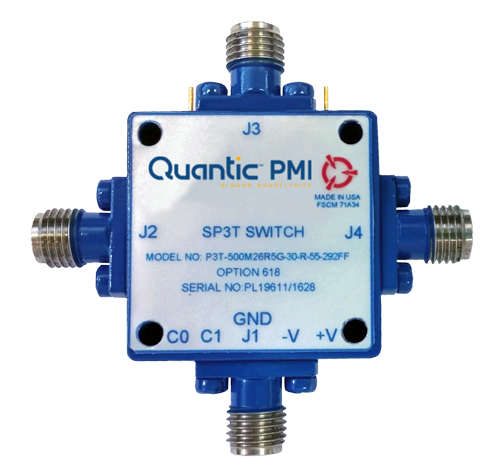

Configuration: | SP3T |
Isolation: | 30 dB min. |
Insertion Loss: | 2.0 dB max. - Measured 1.95 dB |
VSWR In/Out: | 2.0:1 typ. - Measured 1.83:1 |
Input Power: | 23 dBm max. |
Switching Speed: | 100 ns max - Measured 30 ns |
Control Signal: | TTL Logic |
Power Supply: | +5 VDC @ 200 mA typ. - Measured 110 mA, -5 VDC @ 100 mA typ - Measured 22 mA |
Connectors: | 2.92 mm Female Connectors |
Power & Control Connector: | Solder Pins |
Finish: | Painted Blue |
Environmental Ratings: |
Operating Temperature: | -40 to +85 ºC |
Non-Operating Temperature: | -55 ºC to +125 ºC |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107 |
Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
Fungus: | MIL-STD-810C, Method 508.2 |
