P3T-8G12G-60-5/5-SFF Active
SP3T Reflective Switch

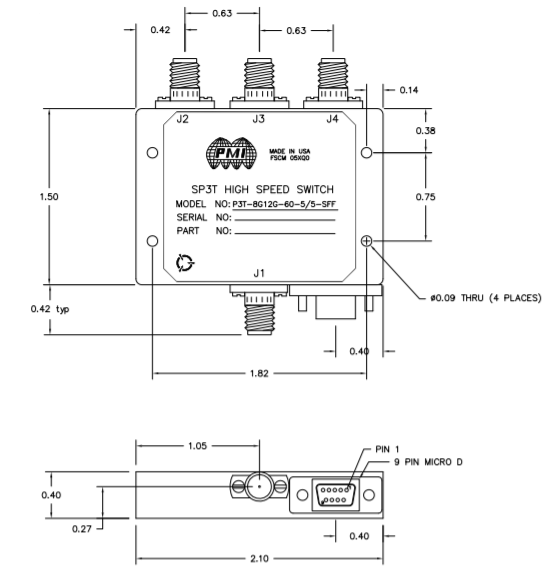

Quantic PMI Model P3T-8G12G-60-5/5-SFF is a single pole, three throw, reflective switch designed to operate over the 8 to 12 GHz frequency range that to maintain low insertion loss, high isolation, and fast switching speeds. Housing size is 2.1" x 1.5" x 0.4" and is outfitted with a 9 pin micro-D connector for power and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP3T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 8 to 12 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 12 |
| Insertion Loss (dB): | 2 dB Max |
| Insertion Loss - Typ (dB): | 2 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 50 ns Max |
| Switching Speed - Typ: | 50 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 500 mW CW Max |
| Control Signal: | Two Line TTL |
| Power Supply: | +5 VDC @ 80 mA Typ, -5 VDC @ 30mA Typ |
| Power & Control Connector: | Micro Sub-D 9 Pin |
| Connectors: | SMA Female |
| Features: | Low Insertion Loss, High Isolation, Fast Switching Speed, Small Size |
| Size: | 2.1" x 1.5" x 0.4" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
