P3T-8G12G-70-T-SFF * Active
Absorptive, High Speed, SP3T Switch
Buy Now
Additional Documents
- Product Feature
- Test Report - 1/22/16
- PL34160 - Unit Data
- PL34161 - Unit Data
- PL34162 - Unit Data
- PL34163 - Unti Data
- PL34164 - Unit Data
- PL34165 - Unit Data
- PL34166 - Unit Data
- PL34171 - Unit Data
- PL34172 - Unit Data
- PL34173 - Unit Data
- PL34174 - Unit Data
- PL34176 - Unit Data
- PL34177 - Unit Data
- PL34178 - Unit Data
- PL34179 - Unit Data
- PL34181 - Unit Data
- PL34190 - Unit Data
- PL34191 - Unit Data
- PL34192 - Unit Data
- PL34193 - Unit Data
- PL34194 - Unit Data
- PL34195 - Unit Data
- PL34196 - Unit Data
- PL34197 - Unit Data
- PL34198 - Unit Data
- PL34199 - Unit Data
- PL34200 - Unit Data
- PL34201 - Unit Data
- PL34202 - Unit Data
- PL34203 - Unit Data
- PL34204 - Unit Data
- PL34205 - Unit Data
- PL34206 - Unit Data
- PL34207 - Unit Data
- PL34208 - Unit Data
- PL34209 - Unit Data
- PL34210 - Unit Data
- PL34211 - Unit Data
- PL34212 - Unit Data
- PL34213 - Unit Data
- PL34214 - Unit Data
- PL34215 - Unit Data
- PL34216 - Unit Data
- PL34217 - Unit Data
- PL34218 - Unit Data
- PL34219 - Unit Data
- PL34270 - Unit Data
- PL34271 - Unit Data
- PL34272 - Unit Data
- PL34273 - Unit Data
- PL34274 - Unit Data
- PL34275 - Unit Data
- PL34276 - Unit Data
- PL34277 - Unit Data
- PL34278 - Unit Data
- PL34279 - Unit Data
- PL44322 - Unit Data
- PL44323 - Unit Data
- PL44354 - Unit Data
- PL44355 - Unit Data
- PL44390 - Unit Data
- PL44391 - Unit Data
- PL44392 - Unit Data
- PL44393 - Unit Data
- PL65009 - Unit Data
- PL65010 - Unit Data
- PL65011 - Unit Data
- PL65012 - Unit Data
- PL65013 - Unit Data
- PL65014 - Unit Data

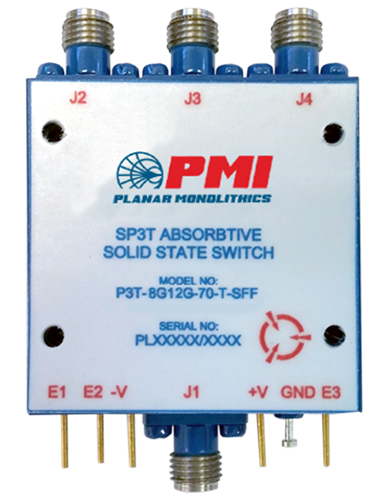

Quantic PMI Model P3T-8G12G-70-T-SFF is an Absorptive, High Speed, Single Pole, Three Throw, Absorptive Switch with a frequency range of 8 to 12 GHz that has an insertion loss of 2.8 dB, an isolation of 70 dB, a VSWR of 1.8:1, a switching speed of 100 ns, and an operating input power of 20 dBm. Supplied with SMA female connectors in a housing that measures 1.5" x 1.5" x 0.4".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP3T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 8 to 12 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 12 |
| Insertion Loss (dB): | 2.8 dB Max |
| Insertion Loss - Typ (dB): | 2.8 dB |
| Isolation (dB): | 70 dB Min |
| Isolation - Typ (dB): | 70 dB |
| Switching Speed: | 100 ns Max |
| Switching Speed - Typ: | 100 ns |
| VSWR In/Out: | 1.8:1 Typ - Measured 1.5:1 dB |
| Input Power: | 20 dBm Max |
| Survival Power: | 30 dBm CW Max |
| Impedance: | 50 Ohm |
| Control Signal: | TTL Compatible |
| Power Supply: | +5 VDC @ 150 mA Typ - Measured 22 mA, -15 VDC @ 100 mA Typ - Measured 58 mA |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.5" x 1.5" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
