| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP4T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.4 to 18 |
|---|
| Frequency Min (GHz): | 0.4 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 2.5 dB Max (0.4 to 10 GHz),
3.5 dB Max (10 to 18 GHz) |
|---|
| Isolation (dB): | 75 dB Min |
|---|
| Switching Speed: | 50 ns Max (Rise/Fall),
100 ns Max (On/Off) |
|---|
| Rise/Fall Time (10% to 90% RF, 90% to 10% RF): | 50 ns Max |
|---|
| On/Off Time (50% TTL to 90% RF, 50% TTL to 10% RF): | 100 ns Max |
|---|
| Impedance: | 50 Ohm |
|---|
| Power Supply: | +5 ± 0.25 VDC @ 120 mA Max,
-15 ± 0.25 VDC @ 50 mA Max |
|---|
| Return Loss (All Ports On or Off State): | -10 dB Min |
|---|
| Operating Power: | 27 dBm Com Port 23 dBm Other Ports
Peak 8 Watts Max @ 1 us
(Note: When input 27 dBm, the open port can not be full reflected) |
|---|
| EMC: | -80 dB Min |
|---|
| Control Logic: | 2 BCD, 0 V < "0" < 0.8 V, 2.4 V < "1" < 5 V |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|

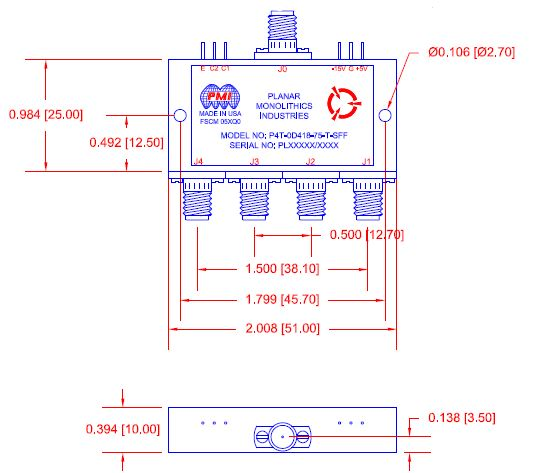

| Size: | 2.008" x 0.984" x 0.394" |
|---|
| Finish: | Alodine and Laser Sealing |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
