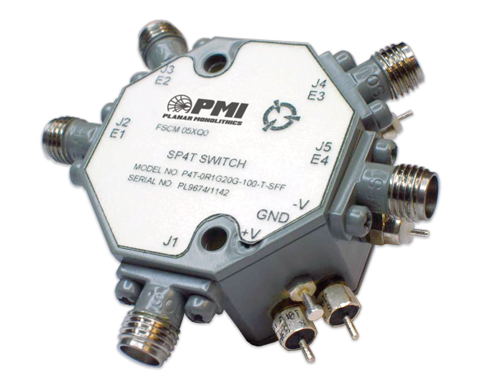

P4T-0R1G20G-100-T-SFF Active
High Speed SP4T Absorptive Switch
PMI Model P4T-0R1G20G-100-T-SFF is a high speed, single pole, four throw, absorptive switch capable of switching within 300 ns. The frequency range is 0.1 to 20 GHz and has over 110 dB of isolation. Package size is 1.25" x 1.25" x 0.7" - radial and has SMA Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 20 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 20 |
| Insertion Loss (dB): | 5 dB Max |
| Insertion Loss - Typ (dB): | 5 dB |
| Isolation (dB): | 110 dB Min |
| Isolation - Typ (dB): | 110 dB |
| Switching Speed: | 300 ns Max |
| Switching Speed - Typ: | 300 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm CW |
| Power Supply: | +5 VDC @ 200 mA, -12 VDC @ 100 mA |
| Control Signal: | TTL - Independent: "1" = Off |
| Power & Control Connector: | Feedthrus |
| Connectors: | SMA Female - removable |
| Features: | Low Insertion Loss, Ultra-High isolation, Fast Switching Speed, Small Size |
| Size: | 1.25" x 1.25" x 0.70" - Radial |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | 0 ºC to +55 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
