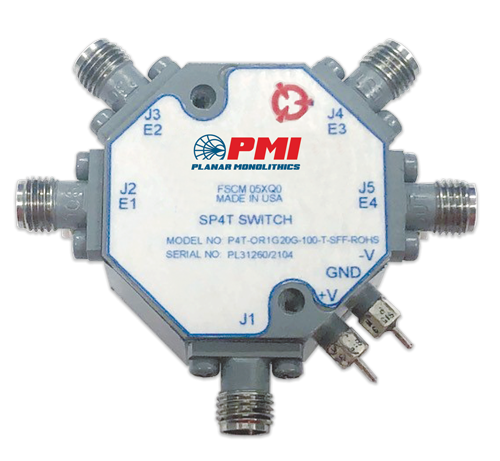

P4T-0R1G20G-100-T-SFF-ROHS Active
SP4T Absorptive Switch - ROHS
PMI Model P4T-0R1G20G-100-T-SFF-ROHS is a single pole four throw absorptive switch with an operating frequency range of 0.1 to 20 GHz with an insertion loss of 5 dB maximum; isolation of 110 dB minimum; 300 ns switching speed and 30 dBm (1 W) input survival power rating. This model has removable SMA female connectors & physical size is 1.25" x 1.25" x 0.7". ROHS Compliant.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 20 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 20 |
| Insertion Loss (dB): | 5 dB Max |
| Insertion Loss - Typ (dB): | 5 dB |
| Isolation (dB): | 110 dB Min |
| Isolation - Typ (dB): | 110 dB |
| Switching Speed: | 300 ns (10% to 90% RF) |
| Switching Speed - Typ: | 300 ns (10% - 90% RF) |
| Survival Power: | 30 dBm (1 W) |
| Power Supply: | +5 VDC @ 200 mA Max, -12 VDC @ 100 mA Max |
| Operating Power: | 20 dBm Max |
| Control Logic: | TTL Logic "0" = On, "1" = Off |
| VSWR (On/Off): | 2.0:1 Max |
| Power & Control Connector: | Feedthrus |
| Connectors: | SMA Female - removable |
| Size: | 1.25" x 1.25" x 0.70" |
| Weight: | 1.5 oz |
| Finish: | Gray Epoxy Polyimide Coating IAW MIL-C-22750, Type I Over Epoxy Polyimide Primer IAW MIL-P-23377, Type I, Class 1 or 3 |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | 0 °C to +55 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107G Cond. A |
