P4T-0R1G20G-60-T-SFF Preliminary
SP4T Absorptive Switch

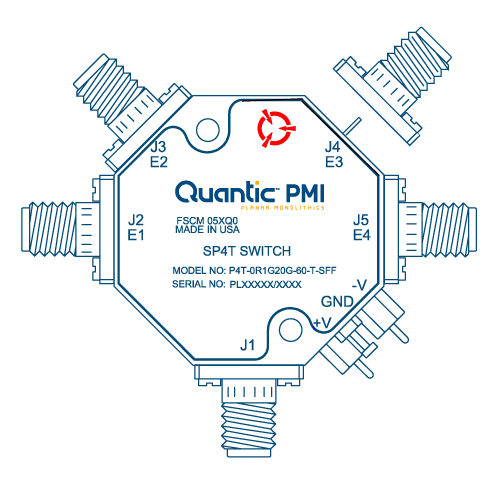

Quantic PMI Model P4T-0R1G20G-60-T-SFF is a Single Pole Four Throw Absorptive Switch that operates over the 0.1 to 20 GHz frequency range that features low insertion loss and high isolation and incorporates a TTL compatible driver for ease of system integration. Housing measures 1.25" x 1.25" x 0.7" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.1 to 20 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 20 |
| Insertion Loss (dB): | 5 dB Max |
| Insertion Loss - Typ (dB): | 5 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 50 ns Typ, 75 ns Max (50% TTL to 10% / 90% RF) |
| Switching Speed - Typ: | 50 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm Max |
| Survival Power: | 30 dBm (1 W) |
| Power Supply: | +5 VDC @ 150 mA Max, -12 VDC @ 50 mA Max |
| Control Signal: | TTL Logic "0" = On, "1" = Off |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| Size: | 1.25" x 1.25" x 0.70" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107G Cond. A |
