P4T-0R3G18G-70-T-SFF Active
SP4T Absorptive Switch
Additional Documents
- Product Feature
- Test Report - 11/2/16
- PL20937 - Unit Data
- PL28006 - Unit Data
- PL28007 - Unit Data
- PL29437 - Unit Data
- PL29437-1 - Unit Data
- PL33693 - Unit Data
- PL37675 - Unit Data
- PL39978 - Unit Data
- PL39978-1 - Unit Data
- PL39978-2 - Unit Data
- PL42393 - Unit Data
- PL42660 - Unit Data
- PL50193 - Unit Data
- PL56975 - Unit Data

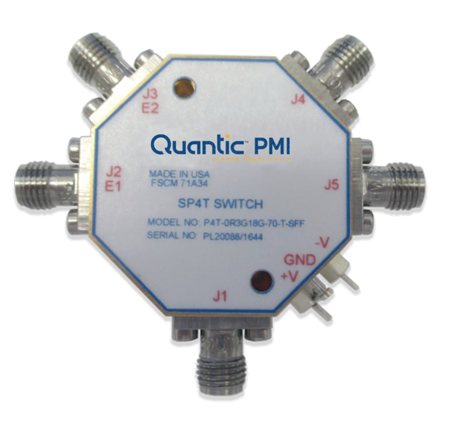

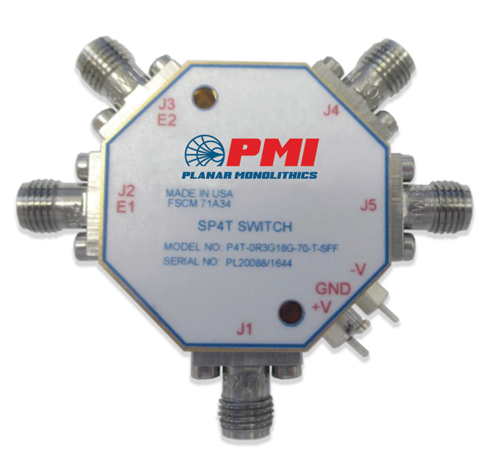

Quantic PMI Model P4T-0R3G18G-70-T-SFF is a single pole four throw absorptive switch operating from 0.3 to 18 GHz that has a maximum insertion loss of 3.75 dB and isolation of 70 dB minimum. Housing measures 1.25" x 1.25" x 0.7" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.3 to 18 |
| Frequency Min (GHz): | 0.3 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.75 dB Max |
| Insertion Loss - Typ (dB): | 3.75 dB |
| Isolation (dB): | 60 dB Min (0.3 to 2 GHz), 70 dB Min (2 to 18 GHz) |
| Isolation - Typ (dB): | 70 dB |
| Switching Speed: | 10 ms Typ, 15 ns Max (Rise/Fall), 75 ns Typ, 100 ns Max (Delay On/Off) |
| Rise/Fall Time: | 10 ns Typ, 15 ns Max |
| Delay On/Off: | 75 ns Typ, 100 ns Max |
| VSWR In/Out: | IN / OUT: 2.0:1 Max - Measured 1.99:1, Terminated OUT: 2.0:1 - Measured 1.79:1 |
| Input Power: | 20 dBm CW Max |
| Survival Power: | 1 W CW, 10 W Peak 1 µs |
| Power Supply: | +5 VDC @ 65 mA Nom - Measured 45 mA, -15 VDC @ 50 mA Nom - Measured 35 mA |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.25" x 1.25" x 0.7" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
