P4T-0R4G10G-40-R-SFF Preliminary
SP4T Reflective Switch

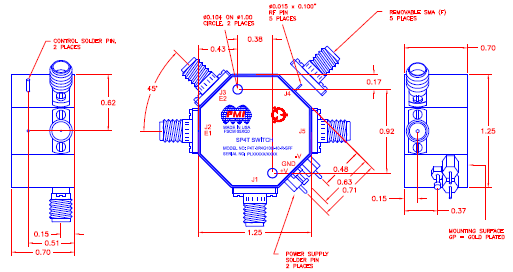

Quantic PMI Model P4T-0R4G10G-40-R-SFF is a single pole four throw reflective switch operating from 0.4 to 10 GHz with a maximum insertion loss of 3 dB and isolation of 40 dB minimum. Housing measures 1.25" x 1.25" x 0.7" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 0.4 to 10 |
| Frequency Min (GHz): | 0.4 |
| Frequency Max (GHz): | 10 |
| Insertion Loss (dB): | 2 dB Typ, 3 dB Max |
| Insertion Loss - Typ (dB): | 2 dB |
| Isolation (dB): | 40 dB (0.4 to 4 GHz), 28 dB (4 to 10 GHz) |
| Isolation - Typ (dB): | 40 dB |
| Switching Speed: | 50 ns Max |
| Switching Speed - Typ: | 50 ns |
| VSWR In/Out: | IN / OUT: 2.0:1 Max Terminated OUT: 2.0:1 |
| Survival Power: | 1 W CW Max (30 dBm), 10 W Peak 1 µs Pulse, 1% Duty Cycle |
| Power Supply: | +5 VDC @ 65 mA Nom, -5 VDC @ 50 mA Nom |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 1.25" x 1.25" x 0.7" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
